Chatillon SKU: DG-400
Price:
€1,295.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Capacity: 1000 newtons.

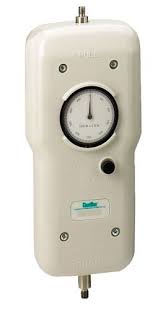

The Chatillon DG-series mechanical force gauge is ideal for a wide range of force testing applications up to 500 pounds. Based on Chatillon's popular DPPH series force gauge, the DG-series force gauges feature a larger, 2.25 dial for improved resolution and readability, peak hold button, durable plastic housing, universal mounting plate, ergonomic shape and improved accuracy of +/-0.5% of full scale. The DG force gauge is an excellent, economical solution for tensile or compression testing.

The Chatillon DG Series gauge may be used as a hand-held device or can be equipped with optional handle set for two-hand operation. It is ideal for test stand applications, and when combined with the MT-500 series mechanical test stand, offers you a versatile, economic test system with a capacity of up to 500 pounds.

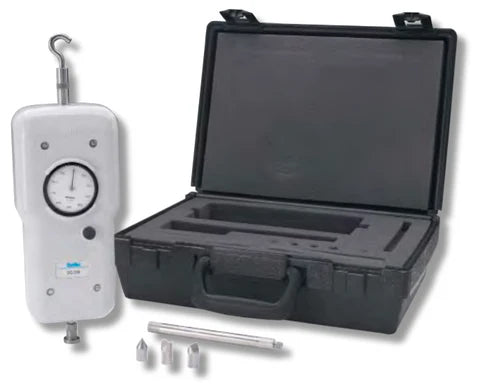

The DG-series force gauge features an easy to read concentric dial that measures clockwise only. Dial rotates 360 degrees for taring. A peak hold switch captures peak readings and can be easily and quickly returned to zero. A mechanical overload feature protects the gauge from damage. Available in pounds, kilograms, or newtons versions. The DG gauges come complete with a protective carrying case and a set of stainless steel attachments. A certificate of calibration with NIST data is supplied standard.

Features:

  • Easy to use, durable construction
  • Tensile or compression testing
  • Intrinsically safe
  • Capacity up to 500 pounds (also newtons and kilograms versions available)
  • Push or pull operation
  • Tare ring
  • Peak capture

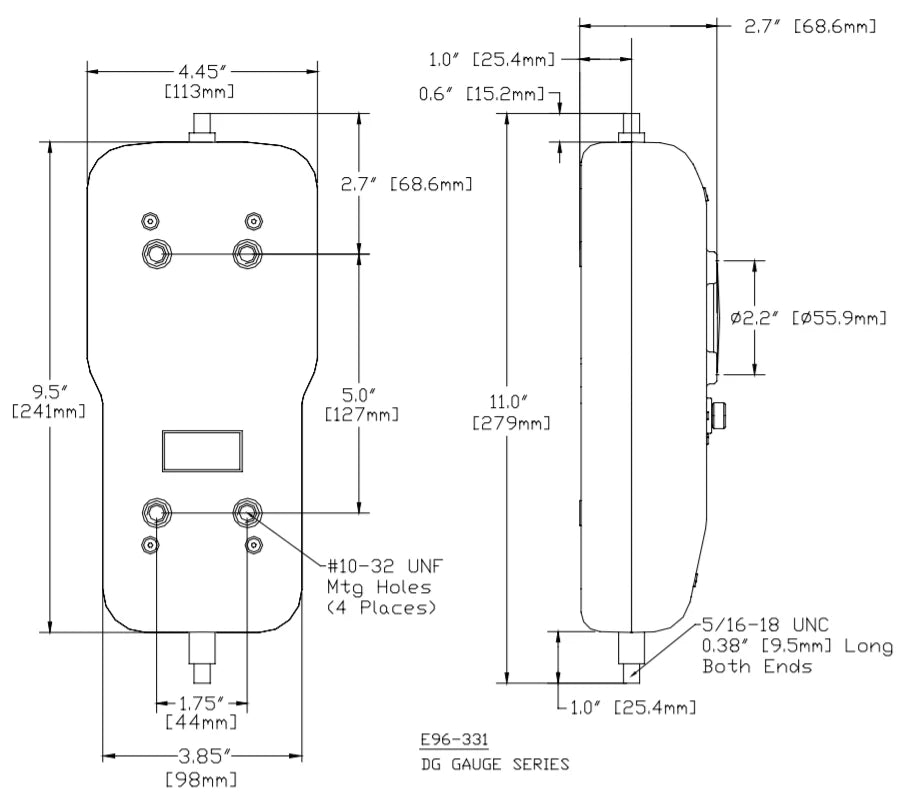

  • Universal Mounting Plate
  • NIST calibration with data

Specifications:

  • Accuracy: +/-0.5% of full scale
  • Overload capacity: 110% of rated capacity
  • Maximum overload: 150% of rate capacity
  • Tare Capacity: 10% of rated capacity
  • Dial resolution: 0.5% of full scale
  • Deflection: 10 mm (.394) at full scale
  • Operation Temperature: +40° to 110°F (+5° to +45° C)
  • Instrument Weight: 5 lbs
  • Shipping Weight 10 lbs
  • Warranty: 2 years
