Capacity: 1000 newtons.
The Chatillon DG-series mechanical force gauge is ideal for a wide range of force testing applications up to 500 pounds. Based on Chatillon's popular DPPH series force gauge, the DG-series force gauges feature a larger, 2.25 dial for improved resolution and readability, peak hold button, durable plastic housing, universal mounting plate, ergonomic shape and improved accuracy of +/-0.5% of full scale. The DG force gauge is an excellent, economical solution for tensile or compression testing.
The Chatillon DG Series gauge may be used as a hand-held device or can be equipped with optional handle set for two-hand operation. It is ideal for test stand applications, and when combined with the MT-500 series mechanical test stand, offers you a versatile, economic test system with a capacity of up to 500 pounds.

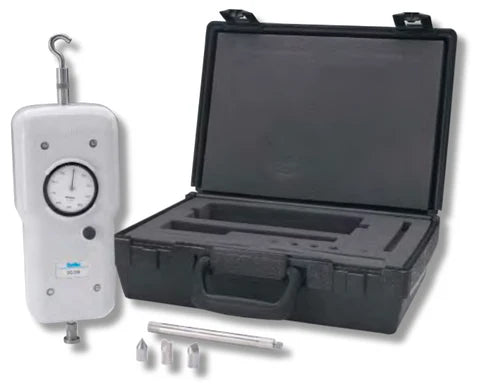

The DG-series force gauge features an easy to read concentric dial that measures clockwise only. Dial rotates 360 degrees for taring. A peak hold switch captures peak readings and can be easily and quickly returned to zero. A mechanical overload feature protects the gauge from damage. Available in pounds, kilograms, or newtons versions. The DG gauges come complete with a protective carrying case and a set of stainless steel attachments. A certificate of calibration with NIST data is supplied standard.
Features:
- Easy to use, durable construction
- Tensile or compression testing
- Intrinsically safe
- Capacity up to 500 pounds (also newtons and kilograms versions available)
- Push or pull operation
- Tare ring
- Peak capture
- Universal Mounting Plate
- NIST calibration with data
Specifications:
- Accuracy: +/-0.5% of full scale
- Overload capacity: 110% of rated capacity
- Maximum overload: 150% of rate capacity
- Tare Capacity: 10% of rated capacity
- Dial resolution: 0.5% of full scale
- Deflection: 10 mm (.394) at full scale
- Operation Temperature: +40° to 110°F (+5° to +45° C)
- Instrument Weight: 5 lbs
- Shipping Weight 10 lbs
- Warranty: 2 years
