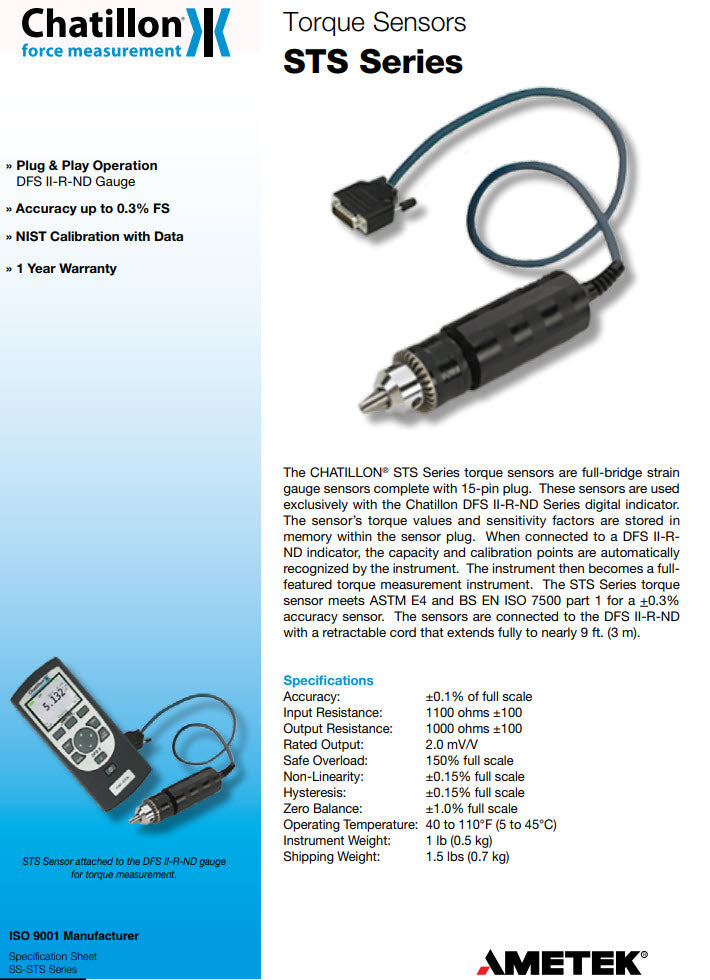

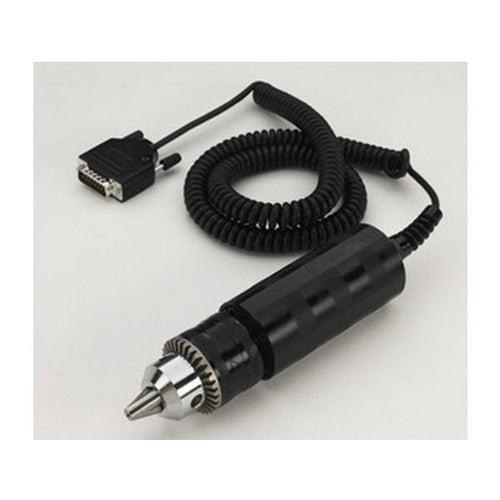

The CHATILLON® STS Series torque sensors are full-bridge strain gauge sensors complete with 15-pin plug. These sensors are used exclusively with the Chatillon DFS2-R-ND Series digital indicator.
The sensor’s torque values and sensitivity factors are stored in memory within the sensor plug. When connected to a DFS2-R-ND indicator, the capacity and calibration points are automatically recognized by the instrument. The instrument then becomes a full-featured torque measurement instrument. The STS Series torque sensor meets ASTM E4 and BS EN ISO 7500 part 1 for a +0.3% accuracy sensor.
The sensors are connected to the DFS2-R-ND with a retractable cord that extends fully to nearly 9 ft. (3 m). Features & Benefits
