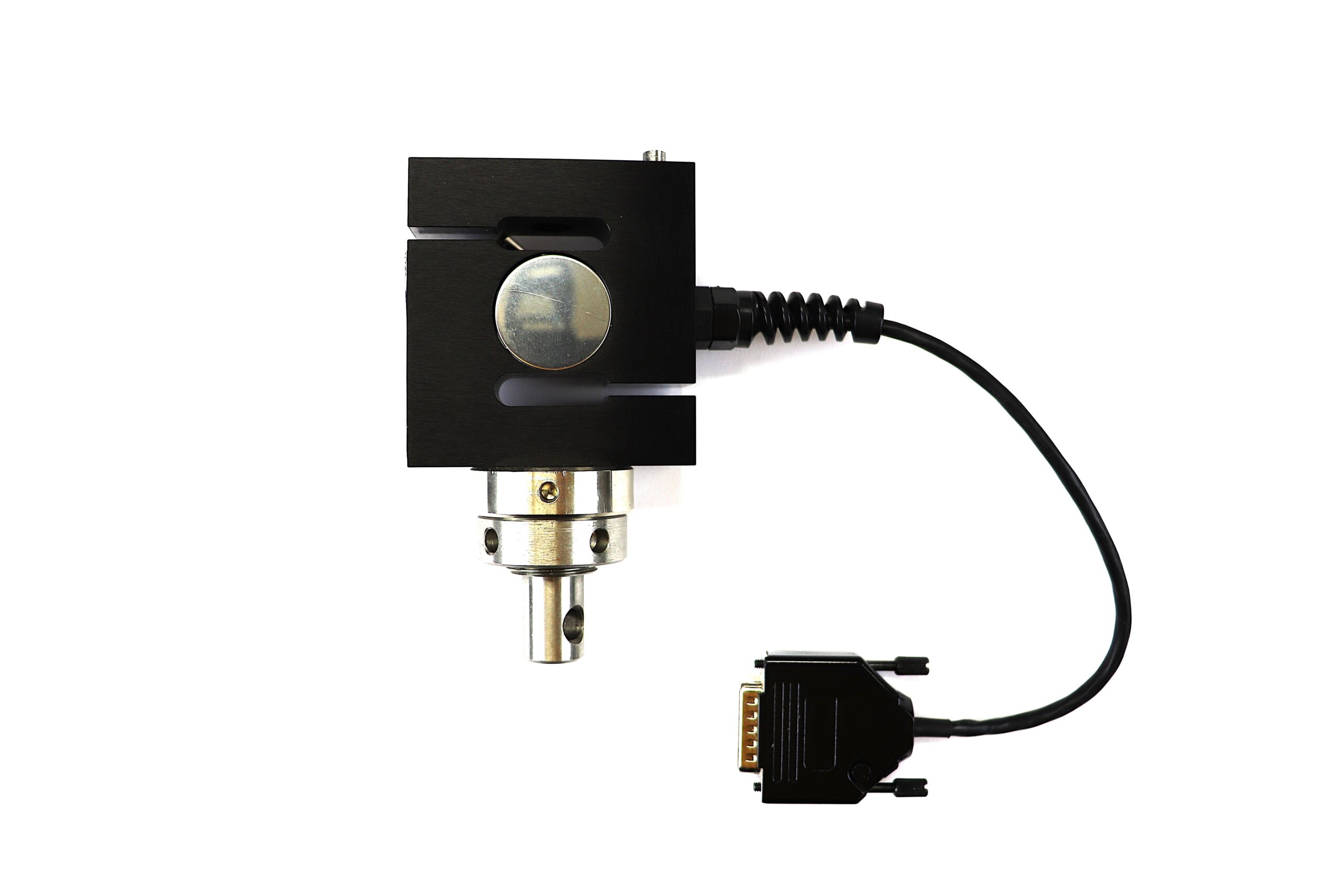

Chatillon Ametek CLC-04-5 remote Load cell , 72 x 0.01 ozf, 4.5 x 0.0005lbs, 2000 x 0.2 gf, 20 x 0.002N, 2 x 0.0002, Item number CLC-04-5
Chatillon Ametek CLC-04-5 remote Load cell , 72 x 0.01 ozf, 4.5 x 0.0005lbs, 2000 x 0.2 gf, 20 x 0.002N, 2 x 0.0002, Item number CLC-04-5
Chatillon Ametek CLC-04-5 remote Load cell , 72 x 0.01 ozf, 4.5 x 0.0005lbs, 2000 x 0.2 gf, 20 x 0.002N, 2 x 0.0002, Item number CLC-04-5
Chatillon Ametek CLC-04-5 remote Load cell , 72 x 0.01 ozf, 4.5 x 0.0005lbs, 2000 x 0.2 gf, 20 x 0.002N, 2 x 0.0002, Item number CLC-04-5
Roll over image to zoom in Click on image to zoom
Chatillon Ametek CLC-04-5 remote Load cell , 72 x 0.01 ozf, 4.5 x 0.0005lbs, 2000 x 0.2 gf, 20 x 0.002N, 2 x 0.0002, Item number CLC-04-5Chatillon Ametek CLC-04-5 remote Load cell , 72 x 0.01 ozf, 4.5 x 0.0005lbs, 2000 x 0.2 gf, 20 x 0.002N, 2 x 0.0002, Item number CLC-04-5Chatillon Ametek CLC-04-5 remote Load cell , 72 x 0.01 ozf, 4.5 x 0.0005lbs, 2000 x 0.2 gf, 20 x 0.002N, 2 x 0.0002, Item number CLC-04-5Chatillon Ametek CLC-04-5 remote Load cell , 72 x 0.01 ozf, 4.5 x 0.0005lbs, 2000 x 0.2 gf, 20 x 0.002N, 2 x 0.0002, Item number CLC-04-5

Chatillon Ametek CLC-04-5 remote Load cell , 72 x 0.01 ozf, 4.5 x 0.0005lbs, 2000 x 0.2 gf, 20 x 0.002N, 2 x 0.0002, Item number CLC-04-5

Chatillon SKU: CLC-04-5
Price:
€1,369.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

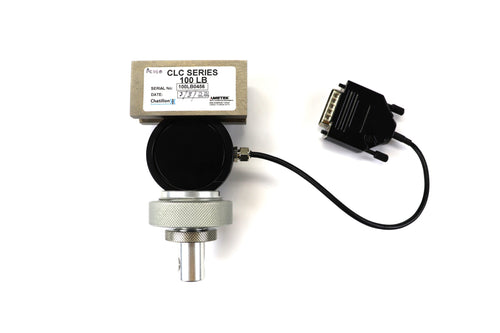

The CHATILLON® CLC Series load cells are full-bridge strain gauge sensors complete with 15-pin plug. These load cells are used with the Chatillon CS Series Digital Force Testers.

The load cell values and sensitivity factors are stored in memory within the sensor plug. When connected to a CS Series Digital Force Tester, the capacity and calibration points are automatically recognized by the instrument. The instrument then becomes a full-featured load measurement instrument.

Features & Benefits
  • Plug & Play Operation
    • CS225
    • CS1100
  • Accuracy
    • Standard up to 0.25% FS
    • Dedicated up to 0.1% of FS
  • NIST Calibration with Data
Chatillon Ametek CLC-0010 remote Load cell 160 ozf, 10 lbf, 5000 gf, 5 Kgf, 50 N

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
