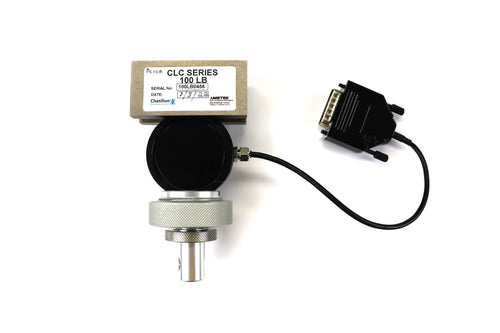

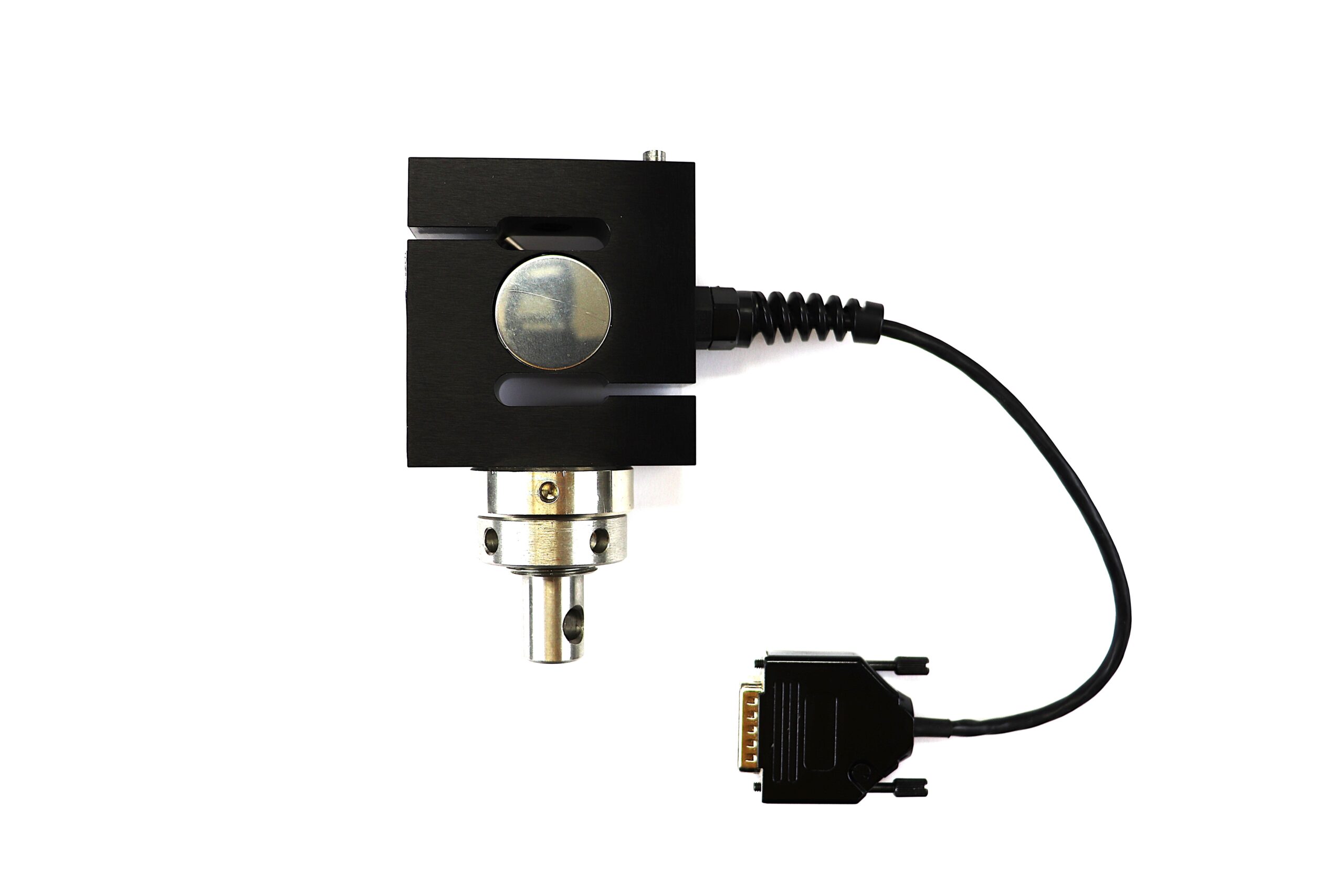

The CHATILLON® CLC Series load cells are full-bridge strain gauge sensors complete with 15-pin plug. These load cells are used with the Chatillon CS Series Digital Force Testers.
The load cell values and sensitivity factors are stored in memory within the sensor plug. When connected to a CS Series Digital Force Tester, the capacity and calibration points are automatically recognized by the instrument. The instrument then becomes a full-featured load measurement instrument.
Features & Benefits
- Plug & Play Operation
- Accuracy
- Standard up to 0.25% FS
- Dedicated up to 0.1% of FS
- NIST Calibration with Data
|

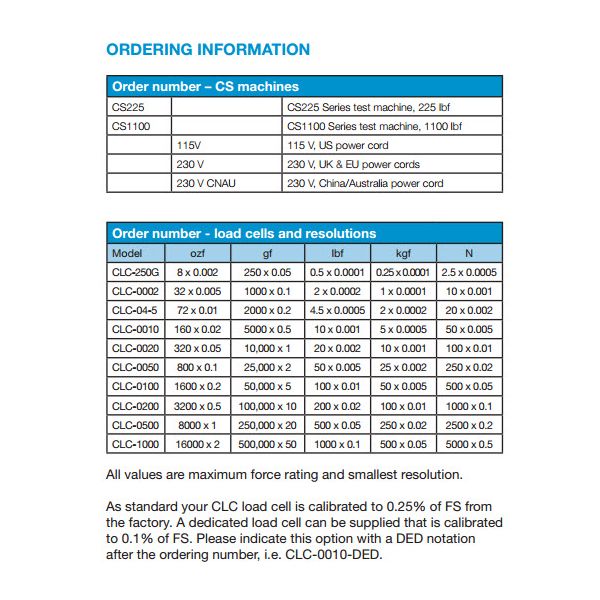

Chatillon Ametek CLC-0010 remote Load cell 160 ozf, 10 lbf, 5000 gf, 5 Kgf, 50 N
