Mitutoyo SKU: 145-217
List price: €867.00 Offer price: €672.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
The Caliper Jaw Inside Micrometer offers you the following benefits:
  • Carbide measuring faces
  • A setting standard (optional) is needed to accurately set the micrometer to the reference point.

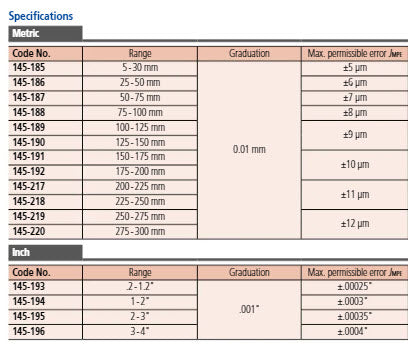

Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Range:
200 - 225 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±11 µm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring spindle:
With spindle lock, spindle pitch 0,5 mm
Measuring face:
Carbide tipped
Measuring force:
1-6 N
Delivered:

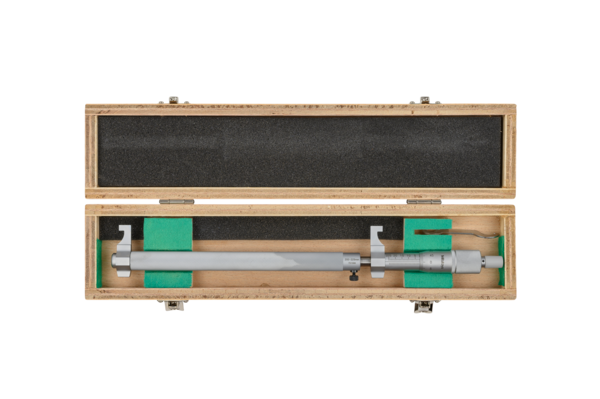

Including box, key
Delivered:
Including box, spanner, setting standard is not included
Mass:
310 g
