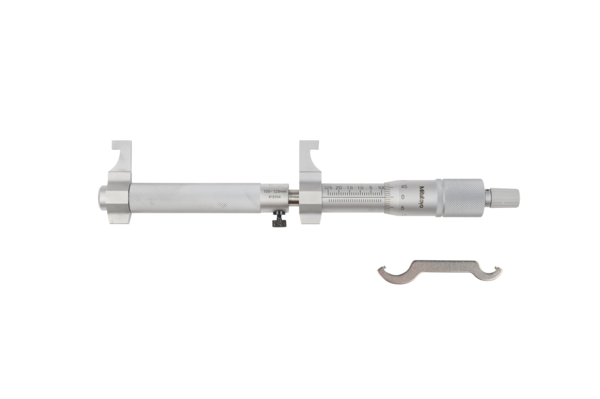

Mitutoyo Caliper Jaw Inside Micrometer 100-125mm 145-189

Roll over image to zoom in Click on image to zoom

Mitutoyo Caliper Jaw Inside Micrometer 100-125mm 145-189

Name: Mitutoyo Caliper Jaw Inside Micrometer 100-125mm 145-189
Brand: Mitutoyo
SKU: 145-189
Price: 483.0 EUR
Availability: InStock

MitutoyoSKU: 145-189

Price:

€483.00 €643.00

Quantity:

The Caliper Jaw Inside Micrometer offers you the following benefits:

Carbide measuring faces
A setting standard (optional) is needed to accurately set the micrometer to the reference point.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

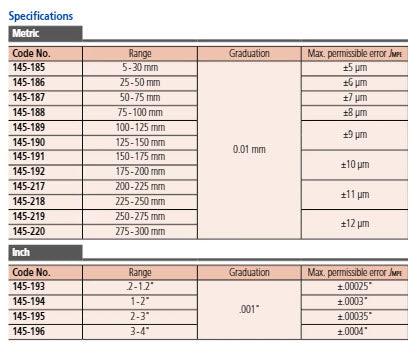

Product Information
Part Number	145-189
Measuring Range	100-125mm
Resolution	0.01mm
Graduation	.01mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	1-6N
Type	Caliper Jaw
Maximum Permissible Error	±9µm
Constant Force Device	Ratchet Stop
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Inch-Metric:	Metric
Range:	100-125 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±9 µm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring spindle:	With spindle lock, spindle pitch 0,5 mm
Measuring face:	Carbide tipped
Measuring force:	1-6 N

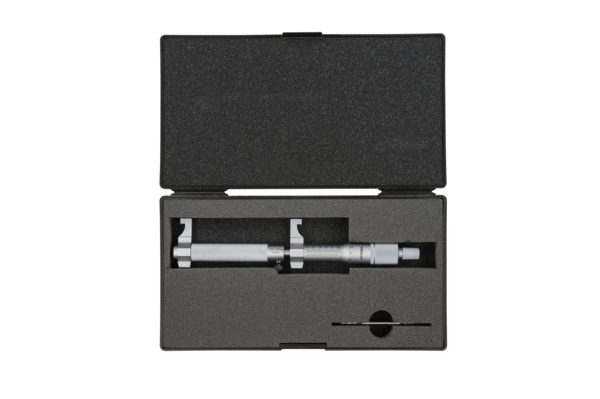

Delivered:	Including box, key
Delivered:	Including box, spanner, setting standard is not included
Mass:	180 g
