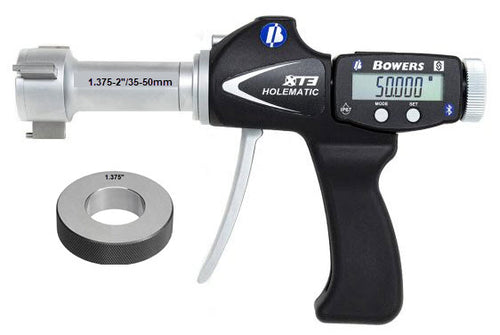

Bowers XT3-BT Holematic Digital Pistol Grip Bore Gauge With Bluetooth
Bowers’ XT3-BT Holematic offers an ergonomic design with a larger and clearer LCD display
FEATURES
- Ergonomic design with larger and clearer LCD swivel display
- IP65 Electronics
- Simple 2-button operation
- 4 preset memories
- Self-centering heads
- Fast, accurate measurement
- Range 2–300mm (0.080” – 12”)
- 2-6mm 2 point/ 6-300mm 3 point measurement
- Resolution 0.001mm/0.00005”
- Tungsten carbide measuring faces on all 3-point heads from 12.5mm
- Blind bore measurement from 2mm – 6mm and above 12.5mm (0.500”)
- Extensions available above 6mm for deep hole measurement
- Setting rings included with individual instruments and sets
- UKAS certificates supplied as standard with all setting rings and gauges
- Serial number on all digital readouts and measuring heads
- Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
- Bore gauges manufactured according to DIN 863, part 4
- Supplied in fitted wooden case
