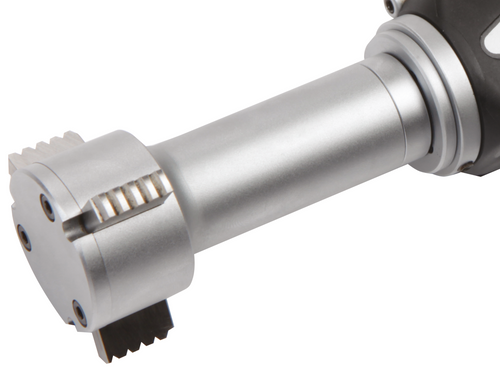

Bowers XT Thread Micrometer - Head Only
XT THREADS - THE BEST WAY TO MEASURE INTERNAL THREAD DIAMETERS
As the world’s leading bore gauge manufacturer, we offer a range of both standard and bespoke solutions for precision thread diameter measurement.
FEATURES
New ergonomic design with larger and clearer LCD display
- M4 – M300 (metric)
- No8 – 12” (imperial)
- Metric, UN, Buttress, Acme, Trapezoidal, Ball screw and non-standard forms available
- Left and right handed available
- 2 Point or 3 Point available
- Very rapid measurement of threads
- Reduce machining time by giving the operator an actual measurement when forming the thread
- Negates the need for many different hard gauges, incl. pre/post plate, pre/post H/T, different classes, etc. Therefore annual re-calibration costs are reduced massively
- Effective (Functional), Pitch & Major measurement
- Calibrate from thread rings (Plain ring for Major Diameter)
- Rings marked with actual PD
- Each of these application heads can be fitted directly to our Bluetooth XT range of internal micrometers in seconds for fast, efficient use with incredibly accurate results that can be digitally recorded.
