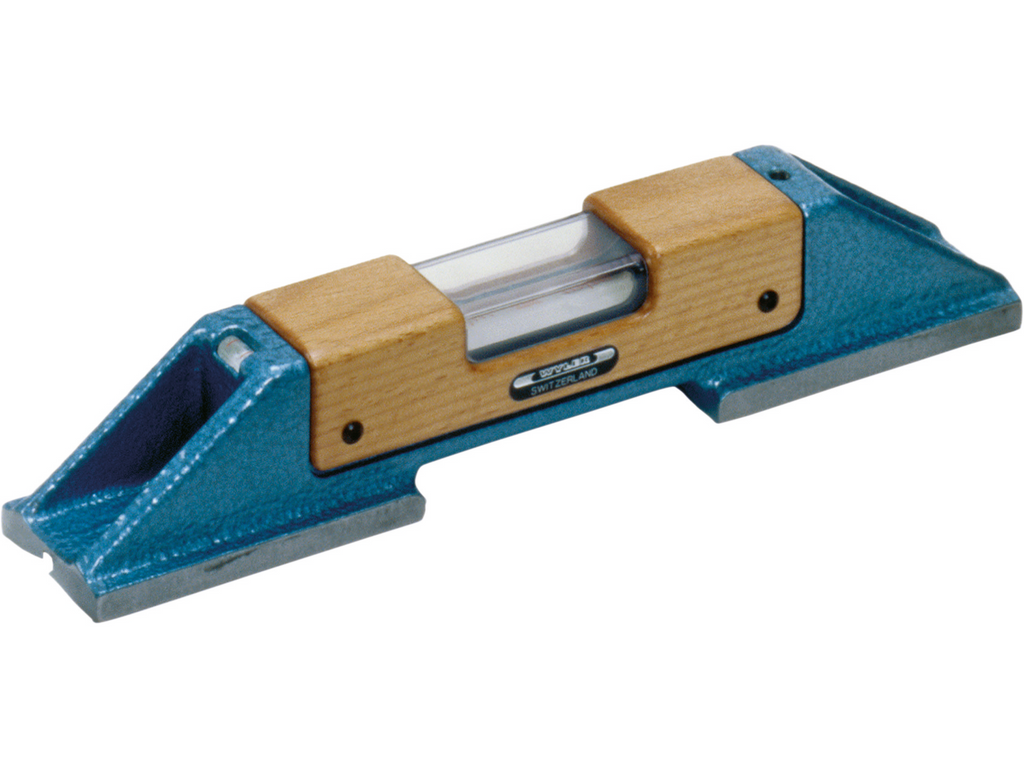

Bower 60-6268 Wyler Precision Engineers Level Dimensions : 250 x 45 x H:46mm Accuracy Inch : .0005"/10" Accuracy metric : .05mm/m Angular : 10 seconds, 155S250-113-050

Bowers Wyler Levels
Execution:
- Standard version with prismatic measuring base contact faces hand scraped for sensitivity 0.05 mm/m and better according to Standards DIN877 + DIN2276/1
- Options:
- Measuring base with flat contact faces
- Measuring base with magnetic inserts
- Simple adjustment of the zero-point and of rollover errors (twist) of the main vial due to an ingenious adjusting system
- Excellent view on the vial from above and from the side
- The main vial being fixed in a special mounting device the vial is absolutely free from any tensions
- Transversal vial with a sensitivity of 2-5 mm/m for easier handling of the level when measuring on horizontal shafts
- The prismatic bases are suitable for shaft diameters

Wyler 155S250-113-050

Wyler Precision Engineers Level Dimensions : 250 x 45 x H:46mm

Accuracy Inch : .0005"/10"

Accuracy metric : .05mm/m

Angular : 10 seconds,

Bowers code 60-6268
