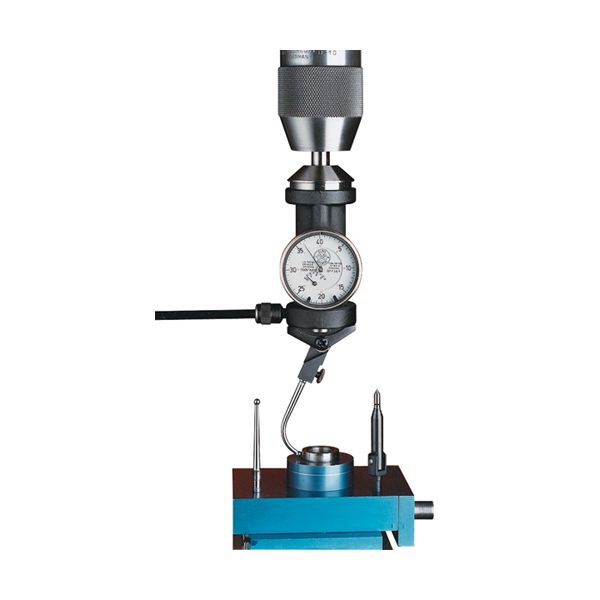

Blake CO-AX Indicator The BLAKE CO-AX INDICATOR provides a simplified method for centering a workpiece or fixture on HORIZONTAL or VERTICAL machines, EXTERNAL or INTERNAL diameters -also with N/C, EDM and other hard to turn spindles.
The face of the indicator remains stationary in any desired position while the machine spindle rotates, thus leaving the operator with both hands free to accurately position the machine table by coordinated movement of the table positioning controls while observing the indicator hand reaction. (Indicator hand travel diminishes as location error is reduced to a point where the hand stands still, indicating coaxial alignment of the diameter being checked with the spindle axis)
By using the CO-AX INDICATOR with the machine spindle running exact operating conditions are more nearly simulated for the centering operation since the influence of power transmission, lubricant flow, bearing characteristics and torque are integrated into the indicator reading.
The face of the indicator remains stationary in any desired position while the machine spindle rotates, thus leaving the operator with both hands free to accurately position the machine table by coordinated movement of the table positioning controls while observing the indicator hand reaction. (Indicator hand travel diminishes as location error is reduced to a point where the hand stands still, indicating coaxial alignment of the diameter being checked with the spindle axis)
By using the CO-AX INDICATOR with the machine spindle running exact operating conditions are more nearly simulated for the centering operation since the influence of power transmission, lubricant flow, bearing characteristics and torque are integrated into the indicator reading.
Product Specifications

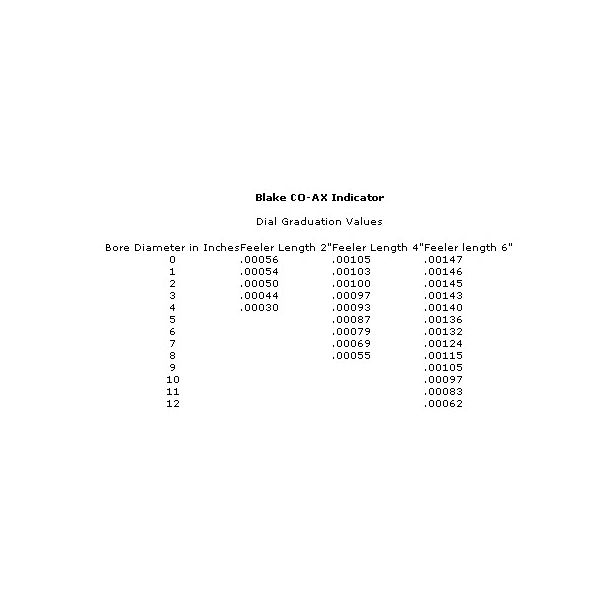

| Brand | BLAKE |
|---|---|
| Model # | CX-1 (801) |
| Shank Diameter | 3/8" |
| Internal Capacity Diameter | 5/32" to 4-1/4" |
| External Capacity Diameter | 0 to 4-1/4" |
| Dial Reading | 0-40 |
| Graduation | .0005" |
| Type | Coaxial Indicator Set |
| Accuracy | Within .0002" of true center |
| Case Type_Material | Fitted case |
| Feeler Ball Diameter | 1/8" |

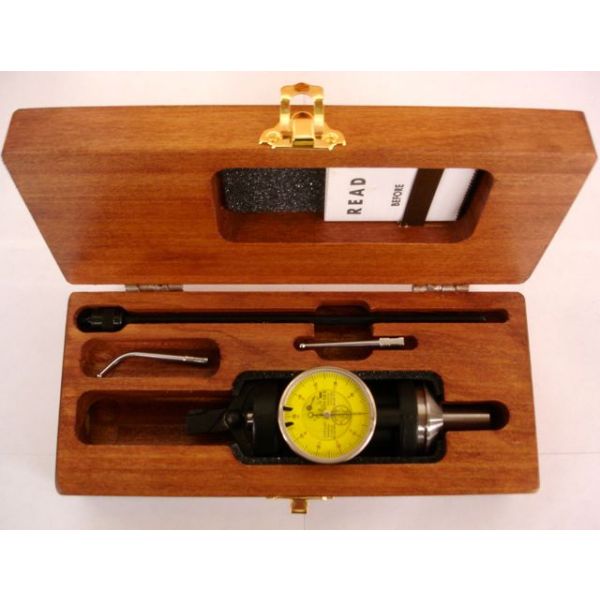

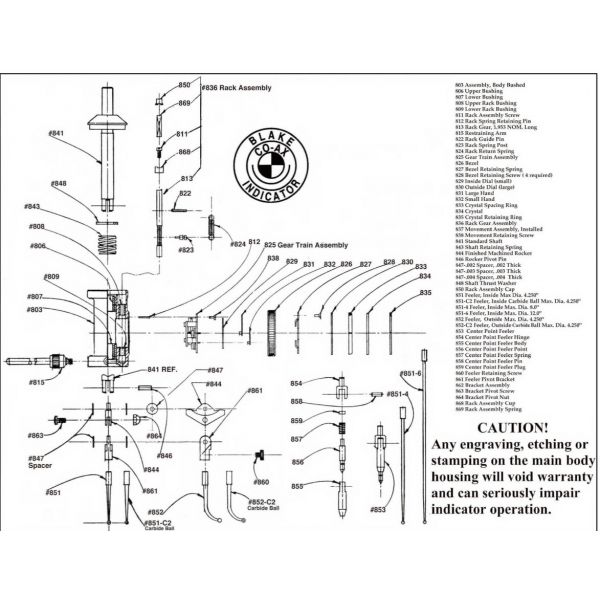

| Includes | (1) Indicator, (1) internal feeler, (1) external feeler, (1) restraining arm and fitted case. |
| Measuring Range | .250" (6mm) Axis Offset |
| Prop. 65 | Yes |
| Shank Length | 7/8" |
| Weight | 2 lbs. |
| Country of Origin | UNITED STATES OF AMERICA |
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
