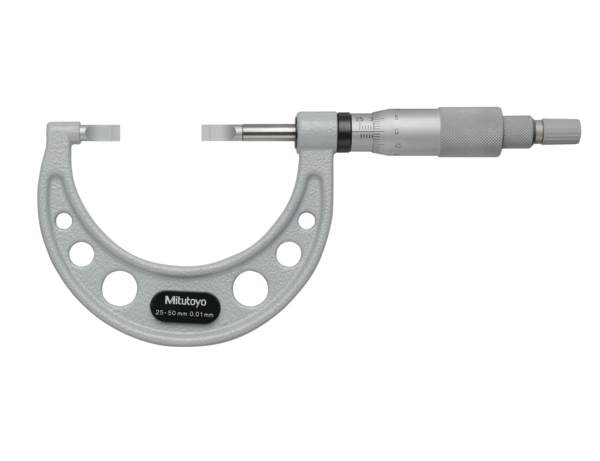

This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts.
Non-rotating spindle.

Product Information
Part Number	122-112-10
Measuring Range	25-50mm
Graduation	.01mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Blade
Constant Force Device	Ratchet Stop
Parallelism	3µm

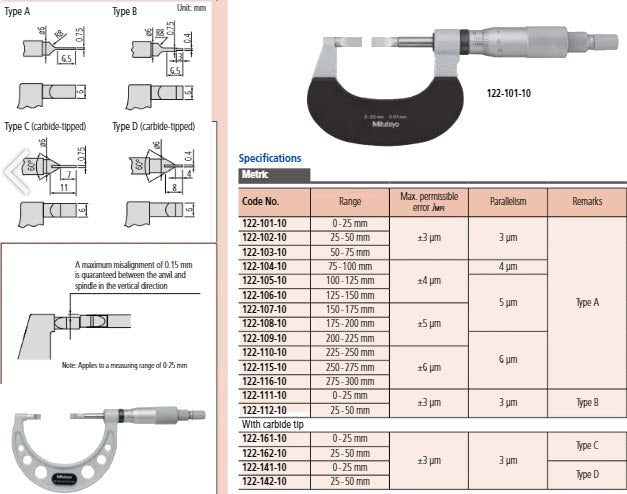

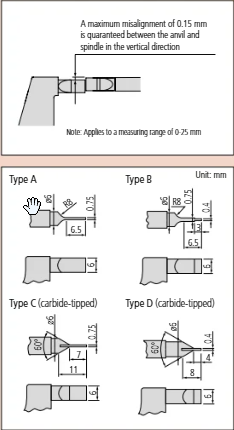

Anvils & Spindle Design	Blades Type B 0.4 x 3mm x 6mm
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	25 - 50 mm
Graduation:	0.01 mm
Max. Permissible Error J MPE:	±3 µm
Parallelism:	3 µm
Measuring face:	Carbide-tipped or hardened steel spindle and anvil
Anvil / Spindle:	Type B, hardened steel t=0.4 mm
Measuring spindle:	ø 6,35 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	300 g
