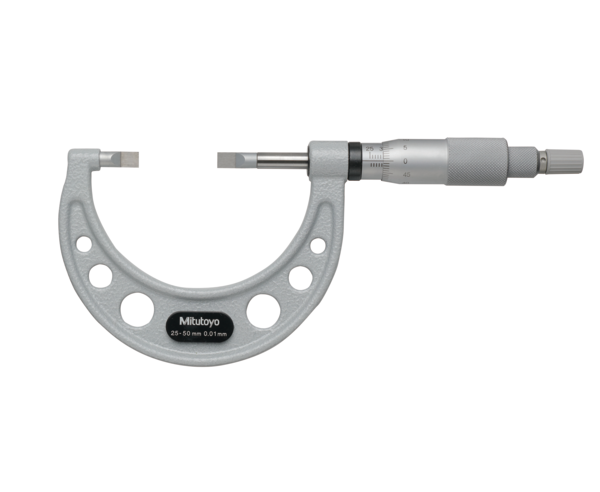

Mitutoyo Blade Micrometer, Carbide-Tipped Blade 25-50mm, 0,75mm Blade 122-162-10

Roll over image to zoom in Click on image to zoom

Mitutoyo Blade Micrometer, Carbide-Tipped Blade 25-50mm, 0,75mm Blade 122-162-10

Name: Mitutoyo Blade Micrometer, Carbide-Tipped Blade 25-50mm, 0,75mm Blade 122-162-10
Brand: Mitutoyo
SKU: 122-162-10
Price: 309.34 EUR
Availability: InStock

MitutoyoSKU: 122-162-10

Price:

€309.34 €423.75

Quantity:

This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts.
Non-rotating spindle.

Product Information
Part Number	122-162-10
Measuring Range	25-50mm
Accuracy	["±0.003mm"]
Graduation	.01mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Blade
Constant Force Device	Ratchet Stop
Parallelism	3µm

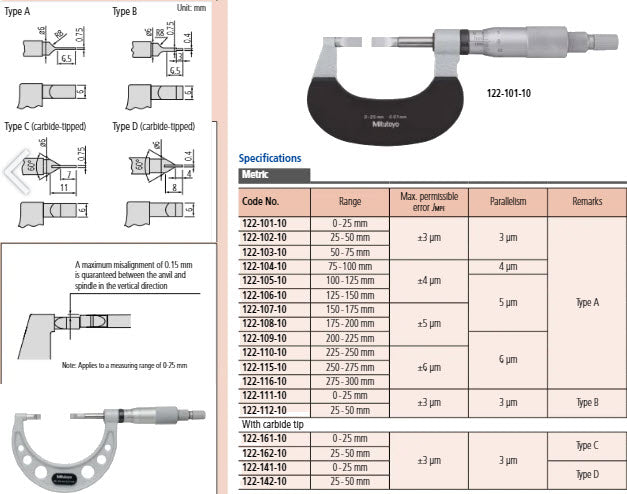

Anvils & Spindle Design	Blades Type C Carbide Tipped 0.75 x 7mm x 6mm
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	25 - 50 mm
Graduation:	0.01 mm
Max. Permissible Error J MPE:	±3 µm
Parallelism:	3 µm
Measuring face:	Carbide-tipped or hardened steel spindle and anvil

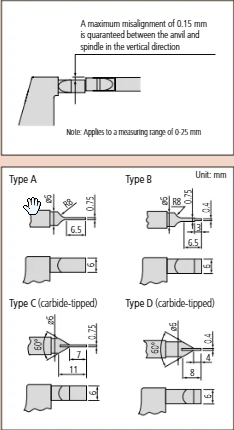

Anvil / Spindle:	Type C, carbide t=0.75 mm
Measuring spindle:	ø 6,35 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	315 g
