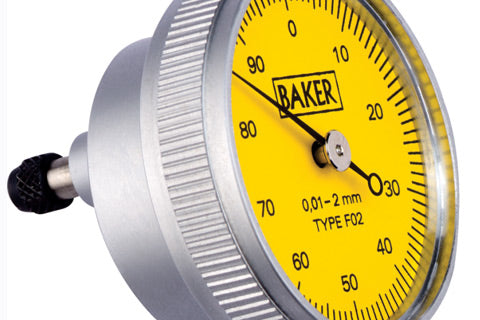

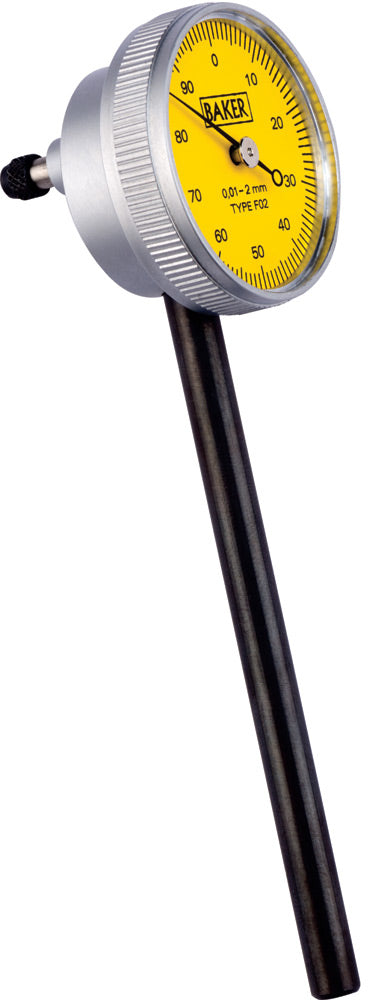

Baker U102 Universal Test set Back plunger Dial Indicator, 0.01 x 2mm Range, 0-100 Bezel 38mm

Roll over image to zoom in Click on image to zoom

Baker U102 Universal Test set Back plunger Dial Indicator, 0.01 x 2mm Range, 0-100 Bezel 38mm

Name: Baker U102 Universal Test set Back plunger Dial Indicator, 0.01 x 2mm Range, 0-100 Bezel 38mm
Brand: Baker
SKU: U102
Price: 156.0 EUR
Availability: InStock

BakerSKU: U102

Price:

€156.00

Quantity:

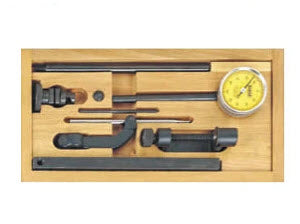

Consists of Back Plunger Dial Gauge, 'G' Clamp, Universal Clamp, Swinging Arm Assembly, Tool Post Holder, Holding Rod, Tommy Bar and Anvil.
Swinging Arm Assembly enables the back plunger dial gauge to be used for internal work up to a depth of 40 mm similar to a lever type gauge.
'G' Clamp, Tool Post Holder. Holding Rod and Universal Clamp allows multiple types of mountings possibilities.
Versatile combinations, allow gauging applications like concentricity checks, alignment of machine tools, testing parallelism and surface plate work.
Supplied in a sleek wooden case with accessories.
For the American market, Universal Test Set meeting the requirements of AGD standard available.

Product Information
Part Number	U102
Measuring Range	2mm
Graduation	.01mm
Accuracy	0.3mm
Unit of Measurement	Metric
Measuring Force	≤2.5N
Repeatability	.005mm
Dial Reading	0-100
Dial Face Size Ø	38mm
Hysteresis	.005mm
Stem	8mm
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	1mm
Calibration Code	CAL14 B1
Stem	8mm
