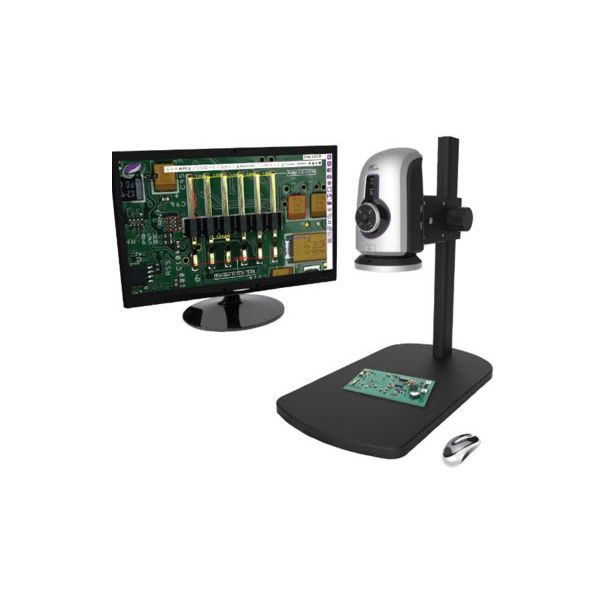

The Omni is an integrated full HD (1080p) digital microscope and measurement system that operates

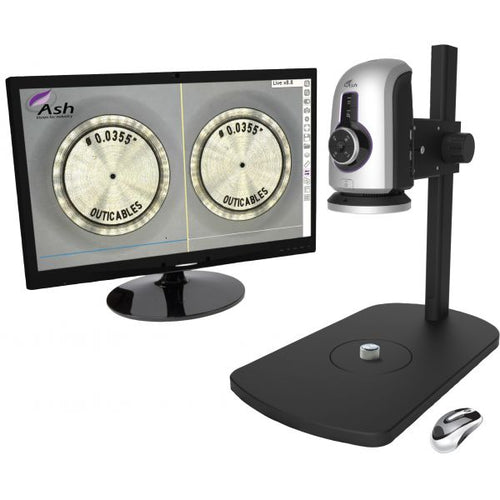

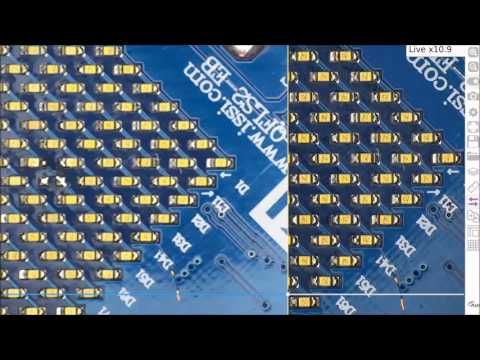

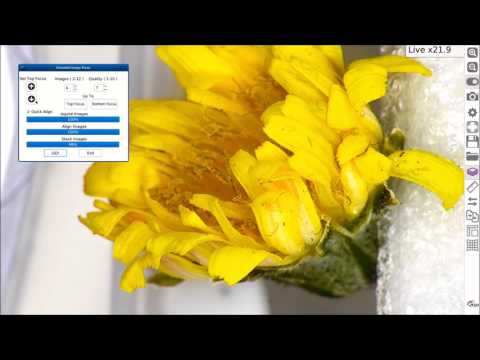

without a PC. Omni’s custom platform incorporates a highly configurable and upgradeable set of inspection and measurement applications such as focus stacking, 2D measurement, side by side and overlay image comparison, custom on screen reticule/graticule and lens distortion correction.
The Omni platform has a powerful image processing and control engine that delivers superb full HD live video image quality at 60 frames per second enabling it to be utilised as a solution in a broad range of quality control, testing, rework, assembly, inspection and documentation tasks.
The Omni GUI (Graphical User Interface) is a custom designed mouse controlled Interface delivering intuitive and efficient operation and control of the full application suite.
Its unique ability to stay in calibration over the entire zoom range is one of many features that differentiate the Omni from other digital inspection systems.

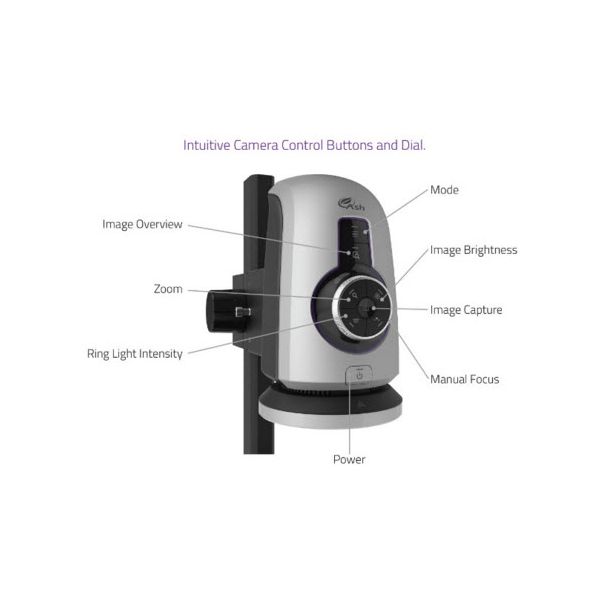

Camera control functions (auto and manual focus, exposure, gain, brightness, white balance) ensure ultrasharp, high contrast imaging.
Omni’s quick release cable free interchangeable illumination modules with intensity and quadrant control
ensure shadow free illumination and glare reduction.
| Monitor Connections | HDMI / DVI |
|---|---|
| Zoom Range | 4D lens – 1.8x to 98x |
| Image capture | USB 2.0 highspeed |
| Operating Temperature | Storage: -10 C to +60C Operating +5C to +40C |
| Weight | 2.5kg |
| Power | 8 Watts |
| Dimensions | Table area: 24 x 41cm, Folded height: 9cm, Raised height: 40cm |
| Monitor Requirements | HD Ready or Full HD (recommended) |
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
