The Inspex HD 1080p Vesa is a high definition camera inspection system offering superb full 1080p HD image quality, colour reproduction, contrast and resolution. This model includes the Vesa Mount.
Integrated, real time, on screen measuring grids and cursors provide a simple and effective way to measure without a PC.
Wide Dynamic Range uses overlapping multiple exposures depending on the saturation level of each pixel.
Noise Reduction removes noise to provide clearer images.
Removable USB Storage Image Capture. Now you can store images directly to your USB Storage Device. Simply plug your device into the Inspex HD 1080p USB port.
On Screen Display provides vital information such as magnification level, focus/exposure mode and in depth settings menu.
White Balance refers to the process of making sure whites appear as white in your images. This will help eliminate colour casts that come from various light sources -- the sun, incandescent bulbs and florescent bulbs.
It is extremely versatile due to its VESA mount (75mm or 100mm) compatibility and multiple configurations which can be adapted to suit any industry or environment. The large working area and height adjustment makes it ideal for rework and repair.
Advanced Functions: Brightness, Cross Hair, Overview, Infrared, Memory Recall (3), LED Intensity, Iris, Hi Contrast, Auto/Manual Focus, Auto/Manual Exposure, Gain.
Specifications:
Dimensions 37cm x 12cm x 14cm
Weight 1.2Kg
Connections HDMi out
Zoom 5D Lens 2.5x-105x (24” screen)
4D Lens 2.0x-85x (24” screen)
Camera Resolution HD 1080p 1980x1080 at 50/60 Hz
Auto/Manual Focus Yes
Basic Functions
Brightness adjustment
Magnification adjustment
Height adjustment
Snapshot
Overview
High Contrast Mode
Recommended Monitor
Panel Format
16:9
Connections DVI & HDMI
Response Time 5ms
Signal Format HD 1080p
Heigh Adjustable Yes
Keypad Yes
Power 8 Watts
Integrated, real time, on screen measuring grids and cursors provide a simple and effective way to measure without a PC.
Wide Dynamic Range uses overlapping multiple exposures depending on the saturation level of each pixel.
Noise Reduction removes noise to provide clearer images.
Removable USB Storage Image Capture. Now you can store images directly to your USB Storage Device. Simply plug your device into the Inspex HD 1080p USB port.
On Screen Display provides vital information such as magnification level, focus/exposure mode and in depth settings menu.
White Balance refers to the process of making sure whites appear as white in your images. This will help eliminate colour casts that come from various light sources -- the sun, incandescent bulbs and florescent bulbs.
It is extremely versatile due to its VESA mount (75mm or 100mm) compatibility and multiple configurations which can be adapted to suit any industry or environment. The large working area and height adjustment makes it ideal for rework and repair.
Advanced Functions: Brightness, Cross Hair, Overview, Infrared, Memory Recall (3), LED Intensity, Iris, Hi Contrast, Auto/Manual Focus, Auto/Manual Exposure, Gain.
Specifications:
Dimensions 37cm x 12cm x 14cm
Weight 1.2Kg
Connections HDMi out
Zoom 5D Lens 2.5x-105x (24” screen)
4D Lens 2.0x-85x (24” screen)
Camera Resolution HD 1080p 1980x1080 at 50/60 Hz
Auto/Manual Focus Yes
Basic Functions
Brightness adjustment
Magnification adjustment
Height adjustment
Snapshot
Overview
High Contrast Mode
Recommended Monitor
Panel Format
16:9
Connections DVI & HDMI
Response Time 5ms
Signal Format HD 1080p
Heigh Adjustable Yes
Keypad Yes
Power 8 Watts

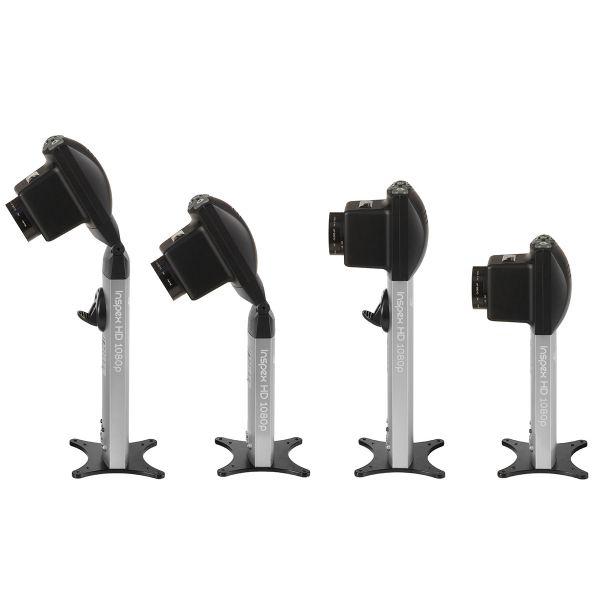

Inspex HD 1080p high definition camera inspection system Vesa (FI801-018)
| Monitor Connections | HDMI / DVI |
|---|---|
| Zoom Range | 5D Lens – 2.3x to 122x |
| Image capture | USB 2.0 highspeed |
| Operating Temperature | Storage: -10 C to +60C Operating +5C to +40C |
| Weight | 1.2kg |
| Power | 8 Watts |
| Dimensions | 37cm x 12cm x 14cm |
| Monitor Requirements | HD Ready or Full HD (recommended) |
| Camera Resolution | HD 1080p, 1980 x 1080 at 50/60 Hz |
