Manufacturer
|
ASH TECHNOLOGIES | |
|
Type of tool
|
microscope | |
|
Magnification
|
x2...x85 | |
|
Illumination
|
LED | |
|
Resolution
|
1920x1080px | |
|
Related items
|

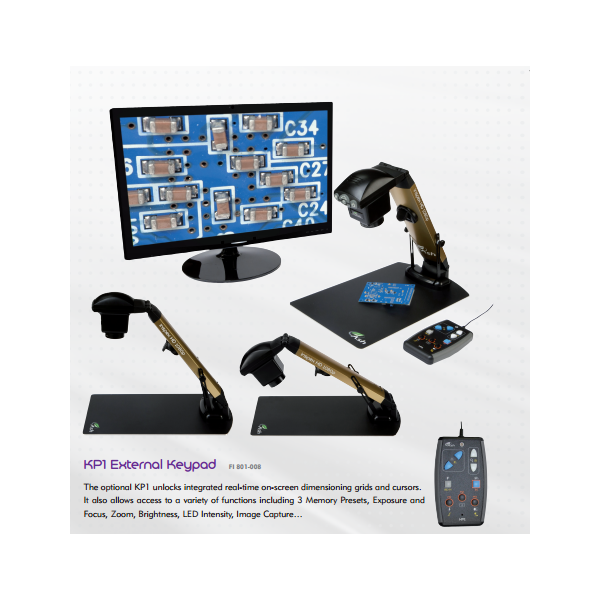

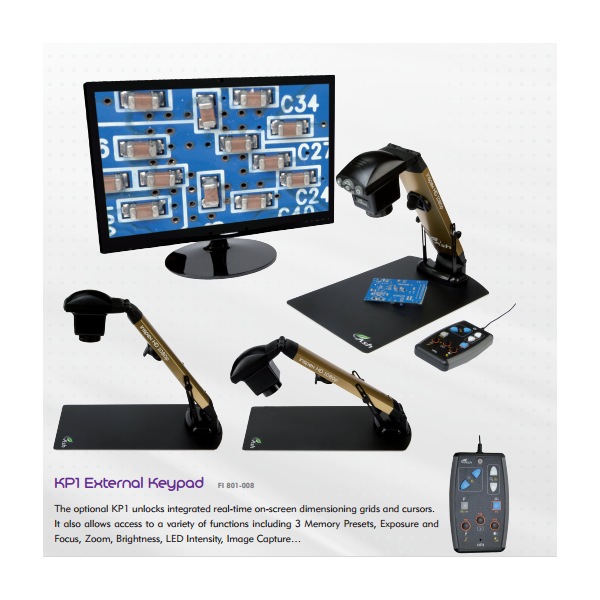

ASH-DLEDLIGHT, ASH-EXKP1, ASH-LENSX10 | |
|
Dimensions
|
240x410mm | |
|
Operating temperature
|
5...40°C | |
|
Power consumption
|
8W | |
|
Tools application
|
for works requires high, precision magnification | |
|
Lens dimensions
|
Ø46mm | |
|
Kind of microscope
|
digital | |
|
Memory
|
8GB FLASH | |
|
Connectors for the country
|
Europe |
Inspection tool features
- adjustable brightness
- adjustment magnification
- auto brightness adjusting
- designed to work with the monitor Full HD 16:9
- infrared function
- max. distance of the head of the course: 250 mm
- measuring grid
- menu show on the screen
- metric units: mm and inches
- min. distance of the head of the course: 205 mm
- Noise Reduction function
- the possibility to save images on USB memory
- white balance
Interface
- DVI
- HDMI
- USB 2.0
Standard equipment
- ground/earth cable
- HDMI cable
- power supply
- worktable 240x410 mm
Supply voltage
- 230V AC
Gross weight3599 g
