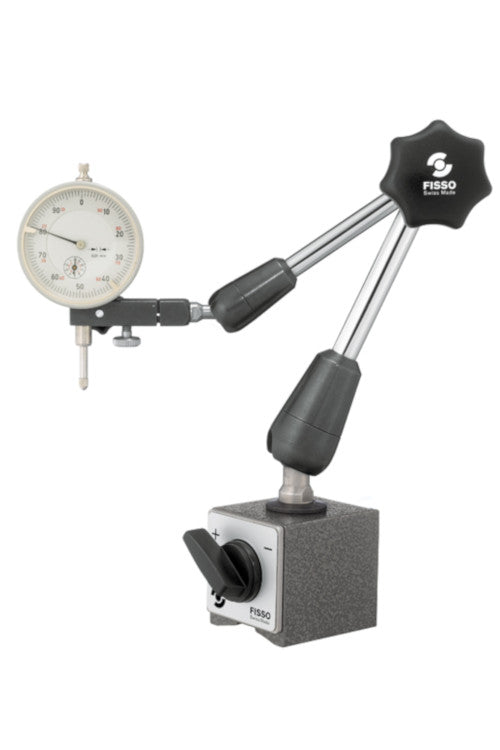

FISSO Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, Code 3328.10, 8mm Stem. Indicator Not supplied
FISSO Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, Code 3328.10, 8mm Stem. Indicator Not supplied
Roll over image to zoom in Click on image to zoom
FISSO Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, Code 3328.10, 8mm Stem. Indicator Not suppliedFISSO Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, Code 3328.10, 8mm Stem. Indicator Not supplied

FISSO Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, Code 3328.10, 8mm Stem. Indicator Not supplied

Baitella AG, Fisso SKU: 3328.10
Price: €325.00 Excluding VAT

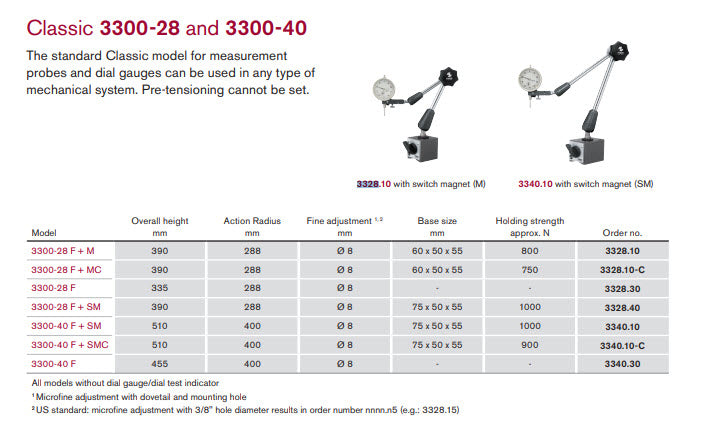

Articulated measuring stands Classic Line 3300-28 F + M magnetic, mechanical center lock and micro-fine adjustment
Freely adjustable arm
Chrome-plated linkage
Magnetic V base
Switchable magnet
Dial mounting hole Ø 8mm
Delivered in individual packages, without dial gauge
Applications:
The standard Classic model for measurement probes and dial gauges can be used in any type of mechanical system.
Pre-tensioning cannot be set.
Articulated measuring stands Classic Line 3300-28 F + M magnetic, mechanical center lock and micro-fine adjustment
Size: 288/390mm
Brand: FISSO
Manufacturer number: 3328.10
Base: switch magnet
Base dimension: 60x50x55mm
op. range/height: 288/390mm
Height: 390mm
Fine adjustment: Ø 8mm
Adhesive force: 800N
Weight: 1.85kg
FISSO Classic Line Model: 3300-28 F + M - 3D articulated gauging arm with on off magnet, 8mm Stem. Indicator Not supplied

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
