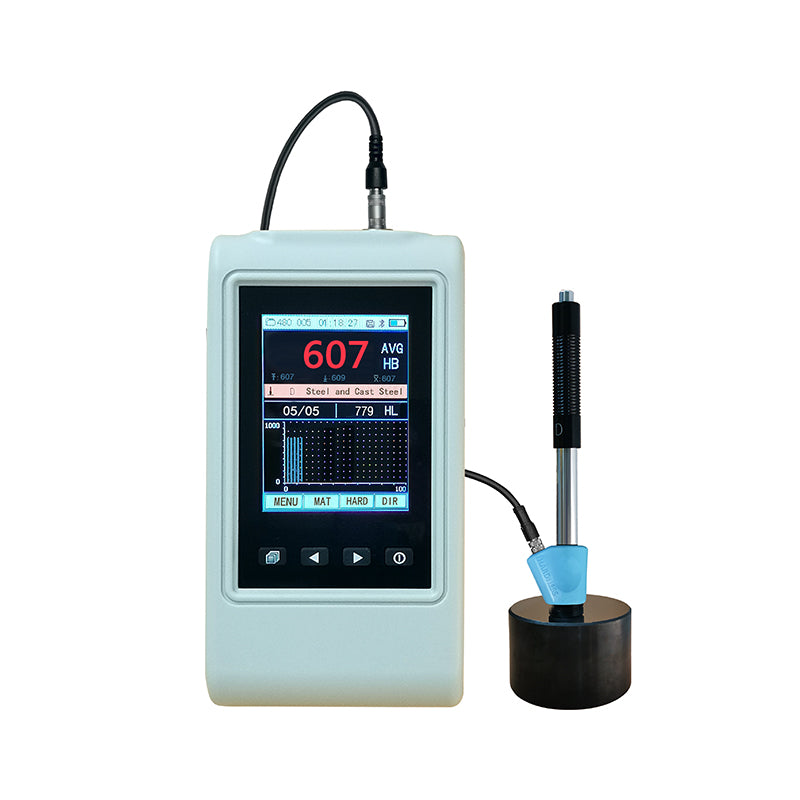

Advanced Leeb hardness model
-Automatic identification of Impact devices
-High performance rechargeable Li battery, intelligent charging management

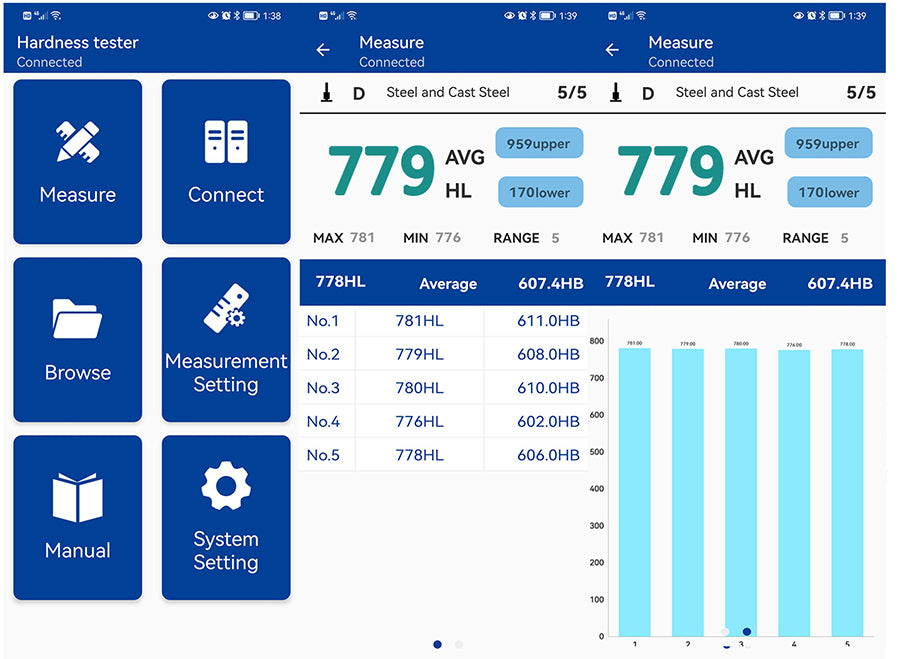

-Optional Software to connect with PC,Support data query, storage, statistics and histogram display and other functions

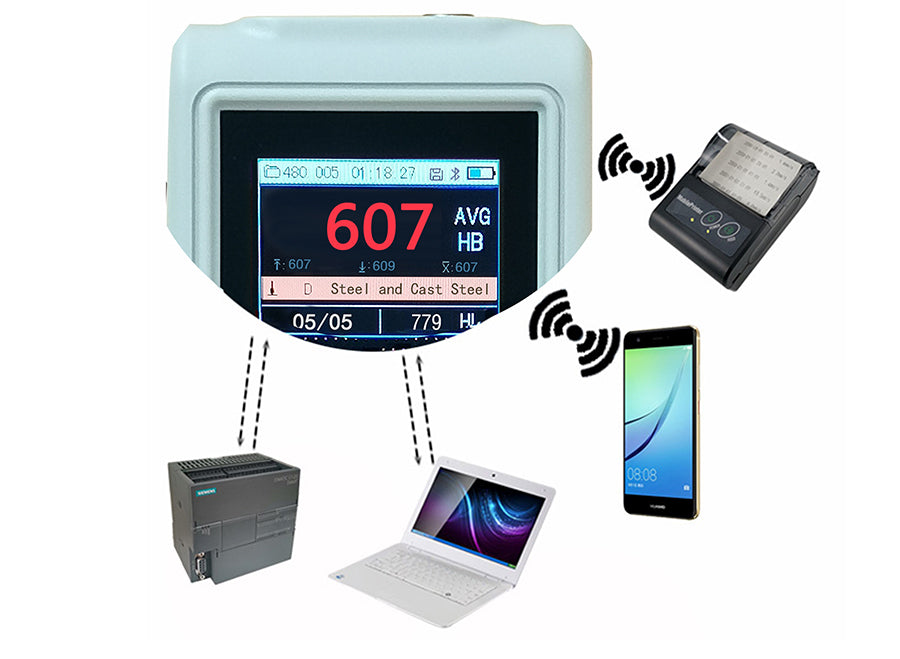

-Mass storage,Bluetooth communication
-Upper and lower limit and sound alarm
-2.8” TFT,320*240 Pixel, showing all functions and parameters
-Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
-For all metallic materials
-Test at any angle, even upside down
-Wide measuring range
-Six Impact Devices are available for special application
-Battery low indication and sound alarm
Technical Specification
|
Hardness scale
|
HL, HRC, HRB, HRA, HV, HB, HS
|
|
Memory
|
510 file,47 ~ 341 groups (Impact times:32 ~ 1) per file
|
|
Measuring range
|
HLD(170 ~ 960), HRA(59 ~ 85), HRB(13 ~ 100),
HRC(20 ~ 68), HB(19 ~ 651), HV(80 ~ 967), HS(30 ~ 100)
|
|
Tensile strength U.T.S. range
|
374 ~ 2652 MPa
|
|
Accuracy
|
±6HLD (760±30HLD) error of displayed value
|
|
6HLD (760±30HLD) repeatability of displayed value
|
|
Standard Impact Device
|
D
|
|
Data Interface
|
USB 2.0, Bluetooth
|
|
Optional Impact Devices
|
DC / D+15 / G / C / DL
|
|
Max. Workpiece Hardness
|
996HV(For Impact Devices D / DC / DL / D+15 / C)
|
|
|
646HB(For Impact Device G)
|
|
Min. Radius of Workpiece (convex/concave)
|
Rmin = 50mm (with special support ring Rmin = 10mm )
|
|
Min. Workpiece weight
|
2 ~ 5kg on stable support
|
|
0.05 ~ 2kg with compact coupling
|
|
Min. Workpiece thickness
|
5mm (Impact Devices D/DC/DL/D+15)
|
|
1mm (Impact Device C)
|
|
10mm (Impact Device G)
|
|
Min. thickness of hardened layers
|
0.8mm
|
|
Power
|
Rechargeable Li Battery, 3.7V, Li(2000mAh)
|
|
Continuous Working time
|
About 30h
|
|
Charging time
|
4 ~ 5 hours
|
|
Operating temperature
|
0 ~ 40ºC
|
|
Humidity
|
≤ 90%
|
|
Overall dimensions
|
212 × 80 × 35 mm
|
|
Weight
|
320g
|
|

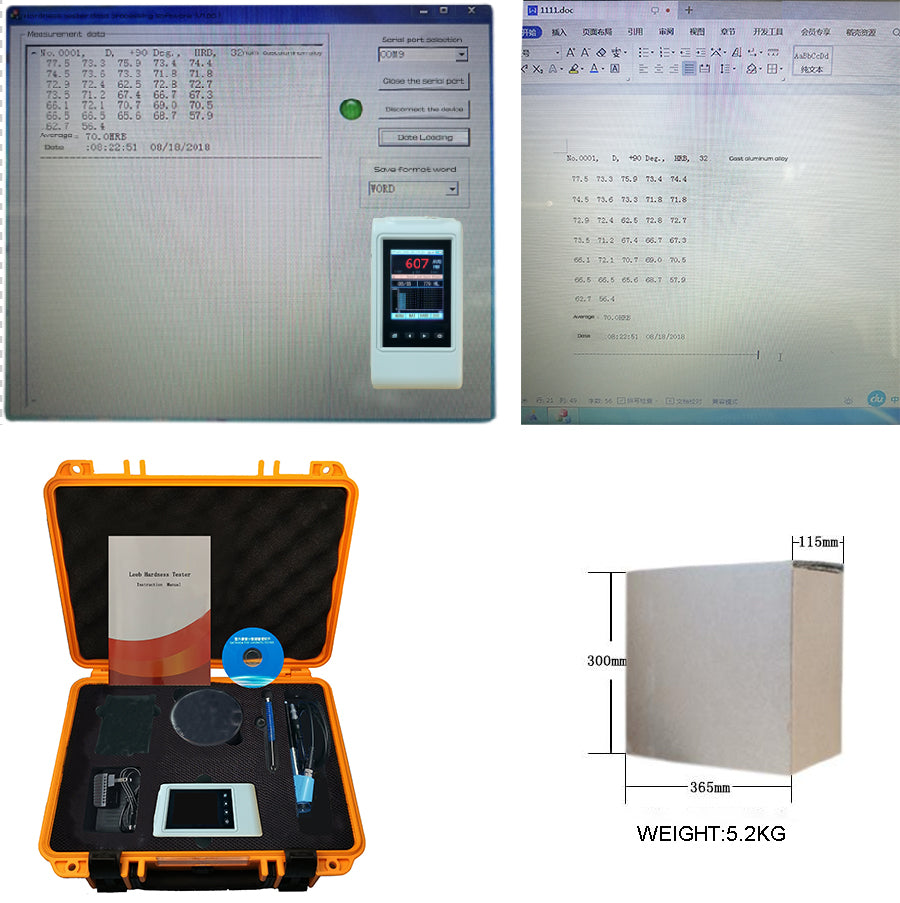

Standard delivery
|
Main unit
Impact Device type D
Test block HLD
Charger
Brush
Table support for main unit
Connecting cable
Company certificate
Instruction manual
Dataview Software
|
|
Optional accessories
|
Optional impact devices
Optional support rings
Other test blocks
Micro Printer
|
