Advanced Roughness tester ART180

Capital Instruments SKU: ART180
Price: €995.00 Excluding VAT

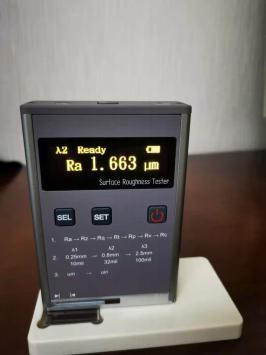

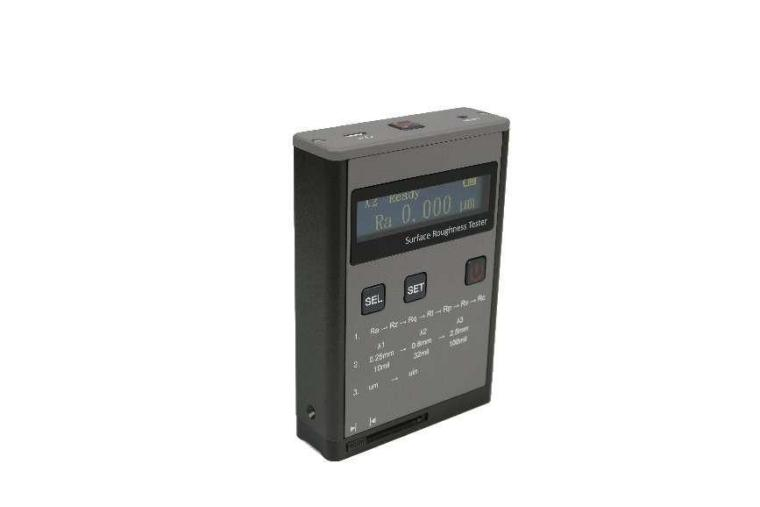

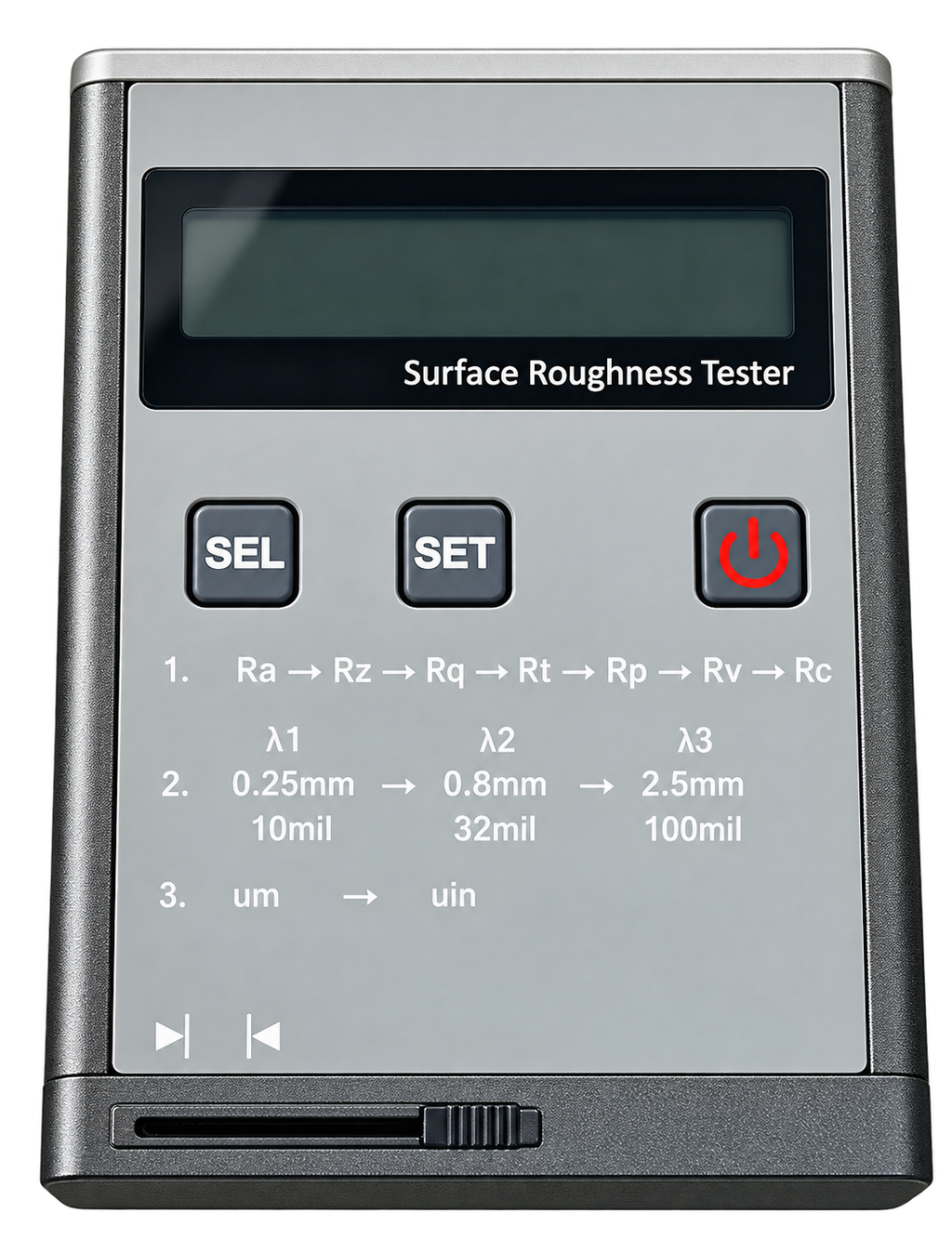

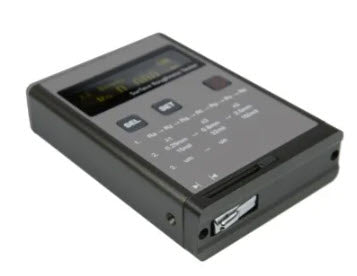

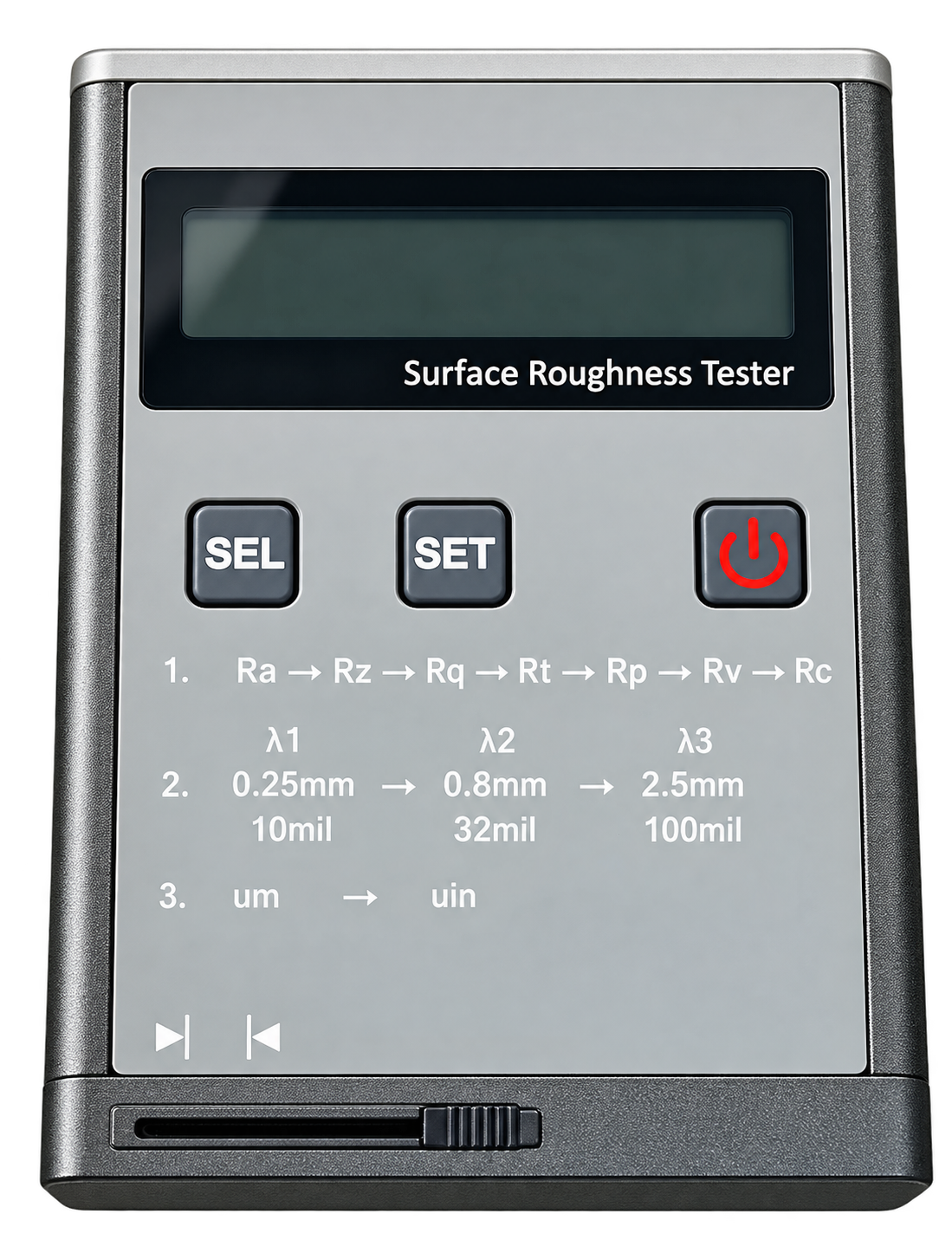

Surface Roughness Tester ART180

Features:

   7 parameters Ra, Rz , Rq, Rt, Rp, Rv, Rc
   High precision inductive sensor
   GAUSS filter
   Comply with ISO4287
   256X64 OLED display
   Built  in   lithium  ion  battery  and  charging  control  circuit,   high capacity, no memory effect, continuous working time more than 15 hours;
    Aluminum      mold      design      makes      durable      and      better  anti-electromagnetic interference ability

specification:

Parameters    Ra, Rz, Rq, Rt, Rp, Rv, Rc
Range    ±80um
Display Accuracy    ±10%
Indication variability    ≤6%
Resolution    0.01um
Probe    Type    InducStive

    Stylus radius/angle    5um
    Stylus material    Diamond
Measuring Force    4mN(0.4gf)
Measuring Unit    Um/uin

Sensor Angle    90 degree
Longitudinal  radius  of  guide head    45mm
Max. Driving Length    6mm
Traverse speed    λ 1: cut off =0.25mm, Vt=0.135mm/s
λ2:cut off =0.8mm, Vt=0.5mm/s
λ3: cut off =2.5mm, Vt=1mm/s
Power    Built-in Rechargeable battery

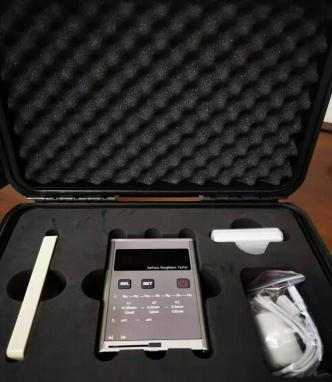

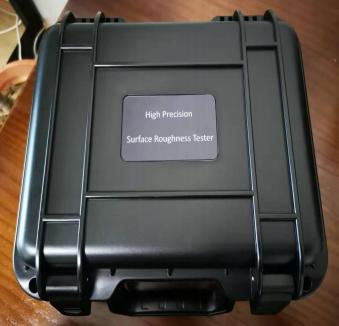

Standard Delivery
   Main unit x 1

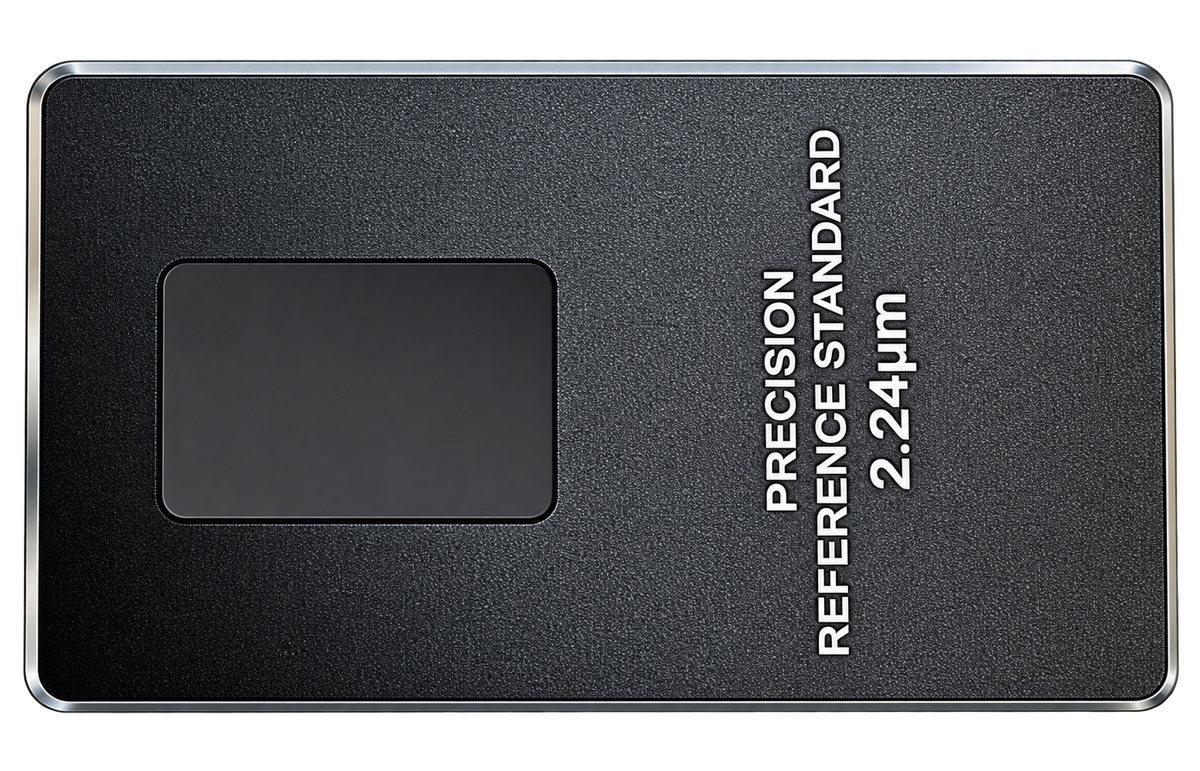

   Calibration block x 1
   AD/DC adapter and data line x 1
   Testing support board x1
