Product Parameters
|
Measurement parameters |
Ra、Rz、Rq、Rt |
|
Measurement range（μm） |
Ra、 Rq： 0.05 ~ 10.0; Rz、 Rt： 0.1 ~ 50 |
|
Sampling length（mm） |
0.25 ， 0.80 ， 2.5 |
|
Stroke length（mm） |
6 |
|
Indicating value resolution ratio |
0.001μm |
|
Indication error |
±15% |
|
Indication value variability |
<12% |
|

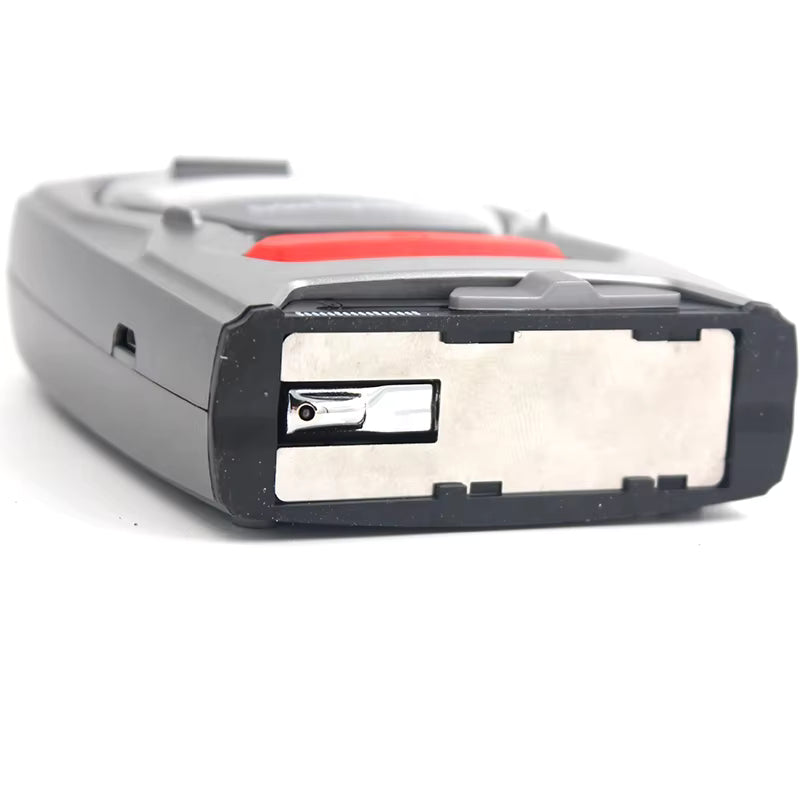

Needle tip arc radius |
10 μm±1μm |
|
Static measuring force of stylus |
≤ 0.5N |
|
Battery |
3.7V lithium ion battery |
|
Overall dimension |
110 mm×81mm×32 mm |
|
Weight |
150g |
