● Aluminized mold design, durable, resistance to electromagnetic interference ability, in line with todays design potential.
● Using the low power consumption ARM microprocessor for data processing and calculation, which greatly improves the measurement and calculation speed.

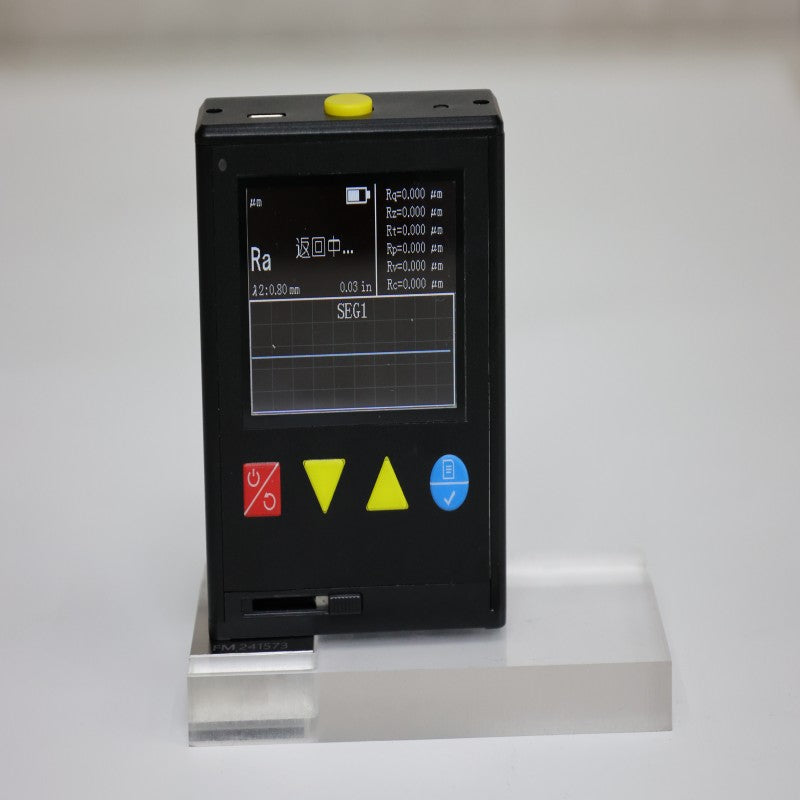

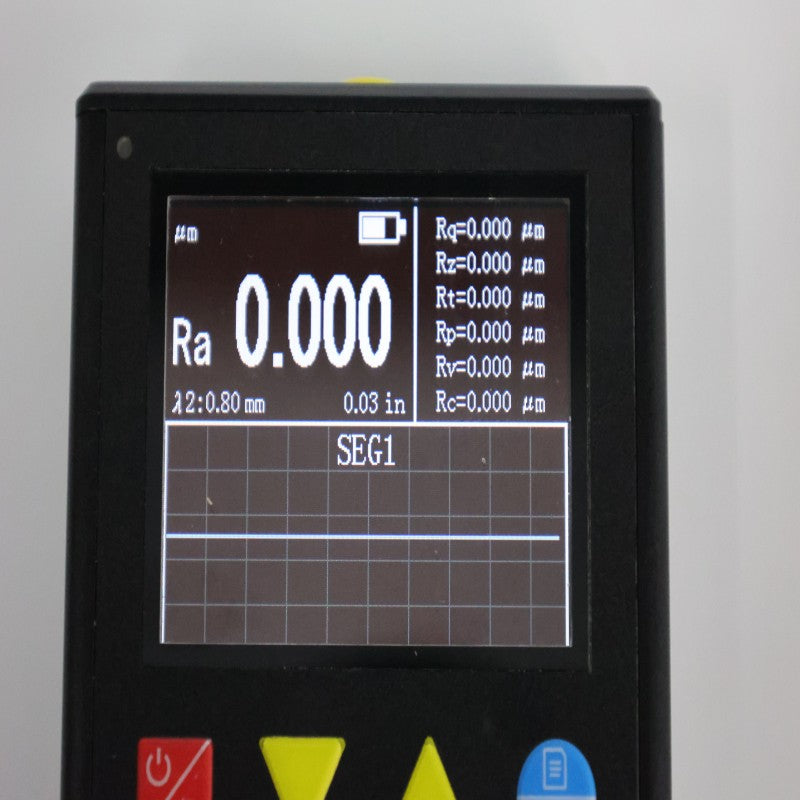

● Display LCD adopts 2.4-inch IPS TFT, high brightness, no visual dead Angle, suitable for various occasions.
● Built-in lithium ion charging battery and charging control circuit, high capacity, no memory effect, can work for a long time.
● Automatic shutdown function and low power consumption hardware and software design make the instrument work very long, suitable for all kinds of fields.

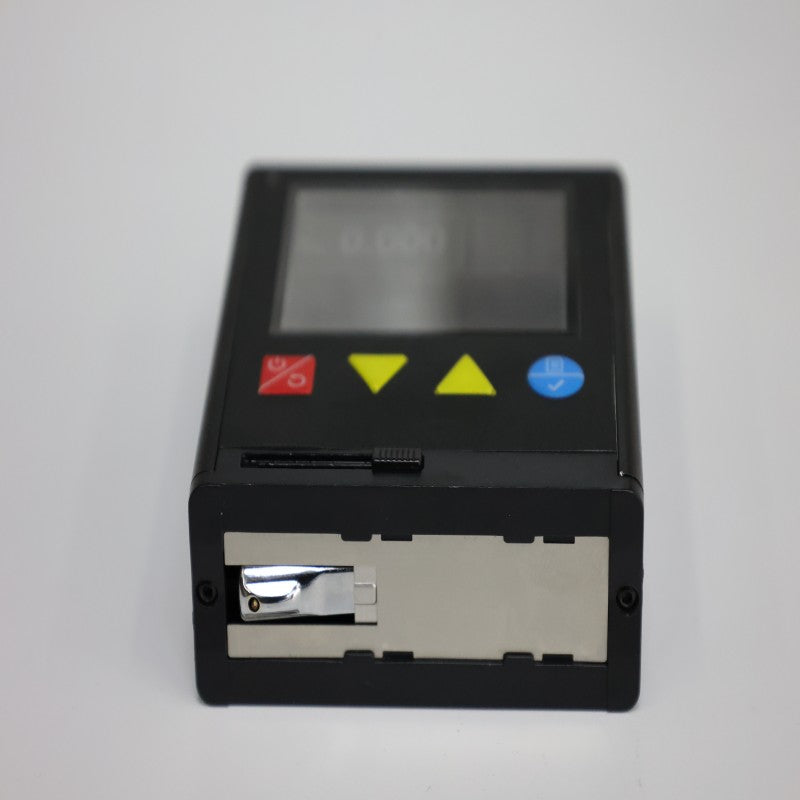

● Sensor head has a protection door, effectively protect the sensor head, to ensure the accuracy of measurement.
|
Measured parameters (μ m)
|
Ra、Rq、Rz、Rt、Rp、Rv、Rc
|
|
Travel Length (mm)
|
5.6
|
|
Sampling length (mm)
|
0.25、0.80、2.50、5.0
|
|
Assessment Length (mm)
|
1.25、4.0
|
|
measuring range (μm)
|
Ra、Rq:0.05~10.0;Rz、Rt、Rp、Rv、Rc:0.1~ 50
|
|
indicating error
|
±10%
|
|
Illustration of variability
|
<12%
|
|
Arc radius and angle of the sensor touch needle tip
|
Arc radius of needle tip: 10 μ m ± 1 μ m; angle 90°10°
|
|
Static measuring force of the sensor needle and its change rate
|
Static force: <0.016N; rate of force change: <800 N/m
|
|
Sensor guide pressure
|
<0.5N
|
|
cell
|
Lithium-ion rechargeable battery
|
|
outline dimension
|
73 mm×28 mm×62 mm
|
|
weight
|
220g
|
|
Working environment conditions
|
Temperature: -20℃ 40℃; relative humidity: <90%, no vibration and corrosive medium
|
|
Part number
|
Name
|
quantity
|
|
1
|
Tester main unit
|
1pc
|
|
2
|
calibration block
|
1 block
|
|
3
|
operating instruction
|
1pc
|
|
4
|
certificate
|
1 pc
|
|
5
|
warranty card
|
1 pc
|
|
6
|
USB cable
|
1 pc
|
|
7
|
instrument container
|
1pc
|
