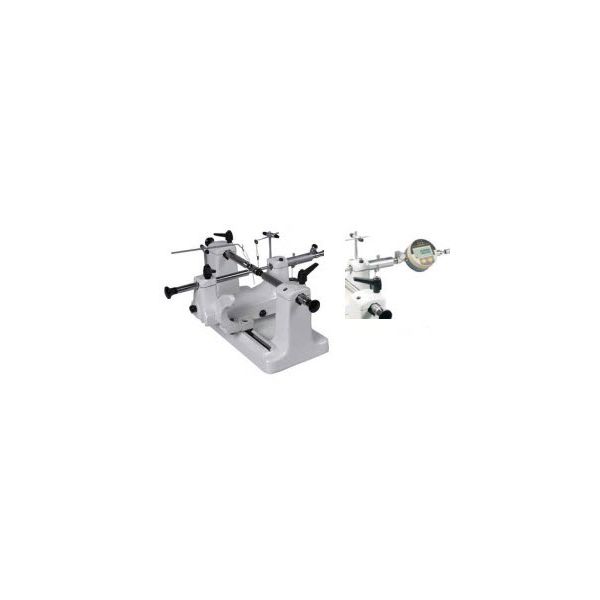

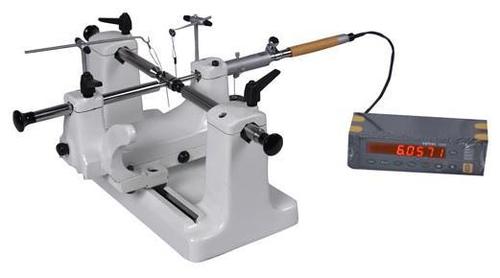

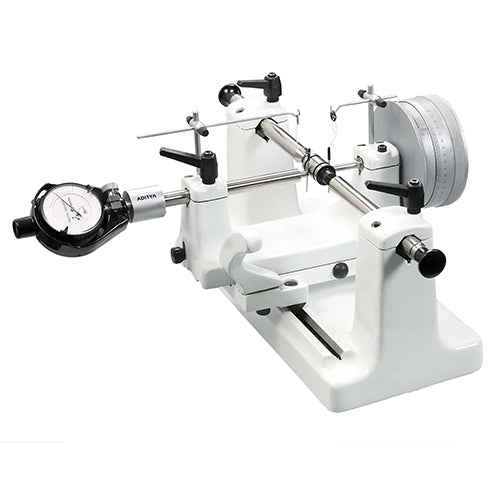

Adita Floating Carriage Micrometer Range 0-4"/0-100mm Electronic Version
Offers effective calibration of Thread Plug Gauges and Taps.
Provides Major Minor Diameters calibration of threads.
Mechanical / Electric Model
Range : 0-100 mm / 0-4'' & 0-175 mm / 0.7''
Resolution : 0.0002 mm / 0.00001'' & 0.0001 mm for electronic model
Repeatability : 0.002 mm / 0.00001'' & 0.0005 mm for electronic model
Accuracy : 0.004 mm & 0.002 mm with P10 probe
Accessories : Thread measuring wires, Prisms, Cylindrical masters & Taper thread plug attacehment. Mandrel set, Female center BSPT & NPT attachment
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
