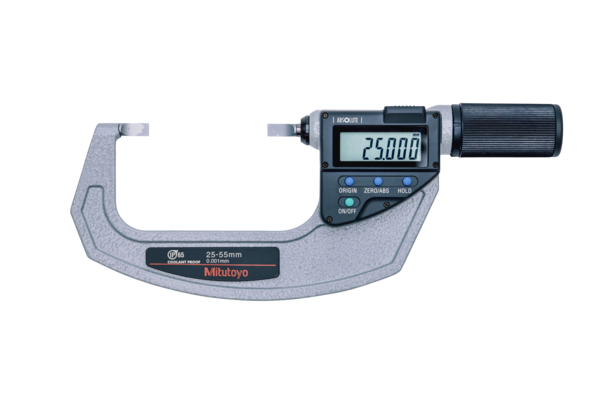

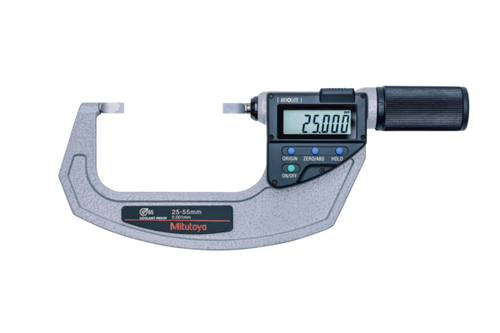

Mitutoyo Absolute Digital Blade Mic. QuickMike IP65, 25-55mm 422-412-20

Roll over image to zoom in Click on image to zoom

Mitutoyo Absolute Digital Blade Mic. QuickMike IP65, 25-55mm 422-412-20

Name: Mitutoyo Absolute Digital Blade Mic. QuickMike IP65, 25-55mm 422-412-20
Brand: Mitutoyo
SKU: 422-412-20
Price: 669.0 EUR
Availability: InStock

MitutoyoSKU: 422-412-20

Price:

€669.00 €892.00

Quantity:

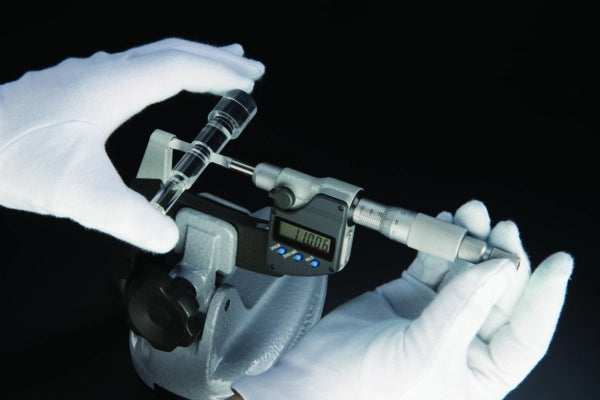

This ABSOLUTE Digimatic Blade Micrometer Quickmike is designed to help you measure hard-to-reach features. It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
Non-rotating spindle
Fast spindle feed of 10 mm/revolution

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	422-412-20
Measuring Range	25-55mm
Resolution	0.001mm
Accuracy	["±.003mm"]
Accuracy	+/_.003mm
Unit of Measurement	Metric
Display Type	Digital
IP Rating	["IP65"]
Measuring Force	3-8N
Type	Blade
Calibration Code	CAL9 B1

Digital/Analog:	Digital
Delivered:	Including box, setting standard, 1 SR44 battery
Inch-Metric:	Metric
Range:	25 - 55 mm
Digital step:	0,001 mm
Max. Permissible Error J MPE:	±3 µm
Parallelism:	3 µm
Display:	LCD, character height 10 mm
Measuring face:	Carbide-tipped or hardened steel spindle and anvil

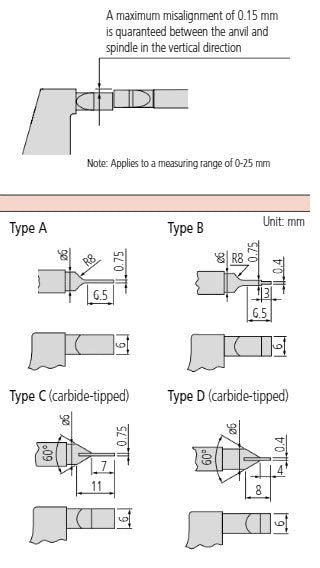

Anvil / Spindle:	Type A, hardened steel t=0.75 mm
Measuring spindle:	ø6,35 mm, non-rotating, spindle feed 10 mm
Measuring force:	5 - 12 N
Power supply:	1 battery SR-44
Battery life:	Approx. 5 years
ON/OFF:	Yes
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Low voltage alarm:	Yes
HOLD:	Yes
Mass:	490 g
