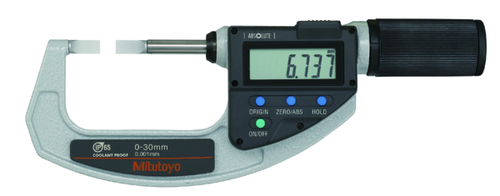

Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20
Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20
Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20
Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20
Roll over image to zoom in Click on image to zoom
Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20

Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20

Mitutoyo SKU: 422-411-20
List price: €798.00 Offer price: €618.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

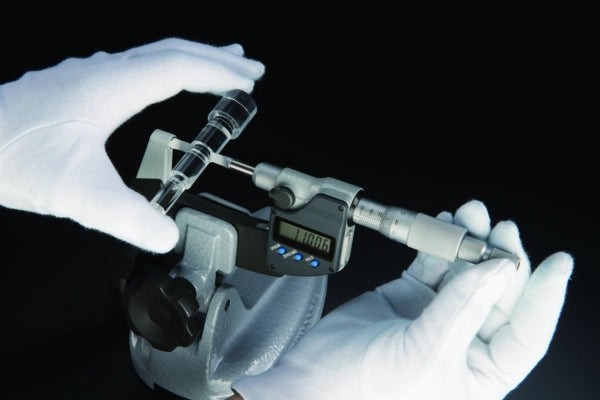

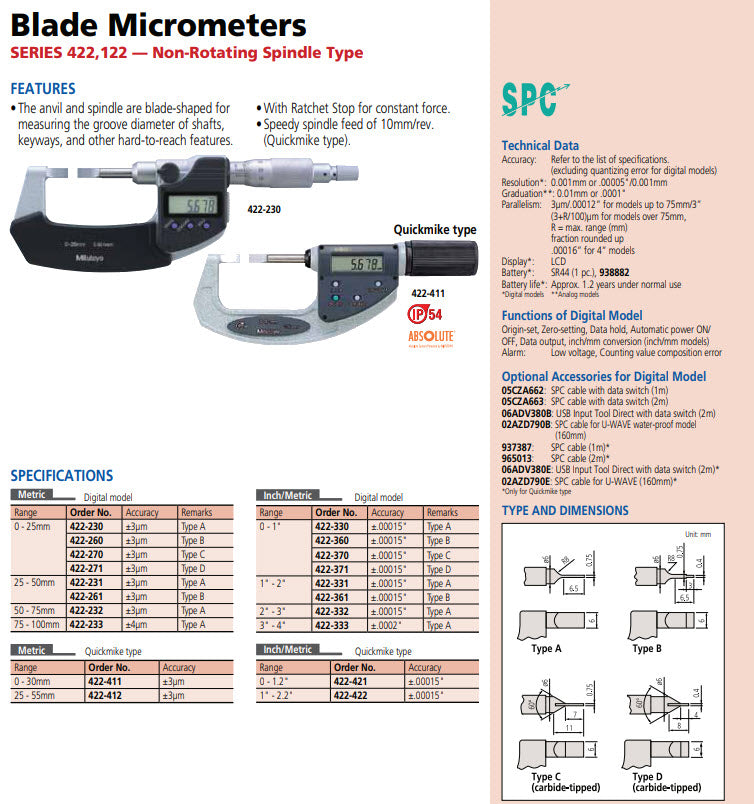

This ABSOLUTE Digimatic Blade Micrometer Quickmike is designed to help you measure hard-to-reach features. It offers the following benefits:
  • Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
  • Non-rotating spindle
  • Fast spindle feed of 10 mm/revolution
Features
Digital/Analog:
Digital
Delivered:
Including box, 1 SR44 battery
Inch-Metric:
Metric
Range:
0 - 30 mm
Digital step:
0,001 mm
Max.
Permissible Error
J MPE:
±3 µm
Parallelism:
3 µm
Display:
LCD, character height 10 mm
Measuring face:
Carbide-tipped or hardened steel spindle and anvil

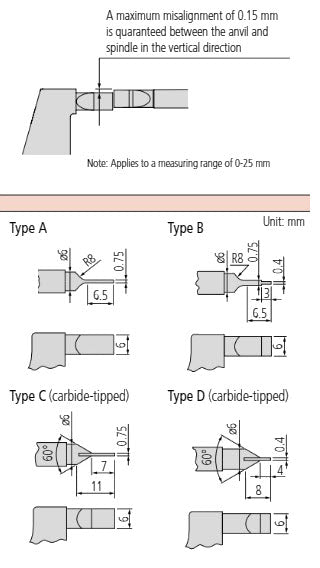

Anvil / Spindle:
Type A, hardened steel t=0.75 mm
Measuring spindle:
ø6,35 mm, non-rotating, spindle feed 10 mm
Measuring force:
5 - 12 N
Power supply:
1 battery SR-44
Battery life:
Approx. 5 years
ON/OFF:
Yes
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Low voltage alarm:
Yes
HOLD:
Yes
Mass:
350 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
