ABSOLUTE Digimatic Linear Gauge LGS-1012P, .5", 0,0005", Counting positive 575-313

Mitutoyo SKU: 575-313
List price: €264.00 Offer price: €204.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
The LGS is a compact ABS linear gauge that offers you the following benefits:
  • Its ABSOLUTE Digimatic data output and IP-66 protection class give you best-of-breed technology.

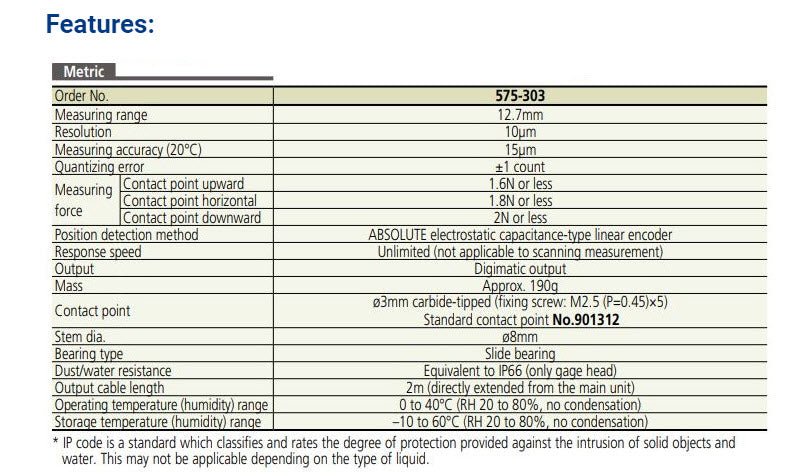

Specification
Inch-Metric:
Inch
Accuracy:
0.0008"
Measuring force:
2 N with spindle down, 1.8 N spindle horizontal, 1.6 N spindle upwards
Scale:
Capacitance-type ABSOLUTE linear encoder
Stem ∅:
3/8"
Max. response speed:
1600 mm/s;
(measuring by scanning not possible) mm/s
Contact point:
Ø3 mm carbide
Cable length:
2 m
Power supply:
5 to 10 V (5 mA max.)
Max. response speed:
Unlimited (measuring by scanning cannot be performed)
Output signal:
Digimatic output
Environmental conditions:
0 °C to 40 °C (20 % to 80 % rel. humidity, no condensation) °C
Bearing type:
Slide bearing
Functions:
Ansi/AGD
Mass:
190 g (included cable)
Digital step:
0,01 mm

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
