AB2-Point Inside Measuring Instrument set no 511-925-10 Range 18-150mm Digital Indicator 543-301B

Roll over image to zoom in Click on image to zoom

AB2-Point Inside Measuring Instrument set no 511-925-10 Range 18-150mm Digital Indicator 543-301B

Name: AB2-Point Inside Measuring Instrument set no 511-925-10 Range 18-150mm Digital Indicator 543-301B
Brand: Mitutoyo
SKU: 511-925-10
Price: 827.0 EUR
Availability: InStock

MitutoyoSKU: 511-925-10

Price:

€827.00 €1,102.41

Quantity:

This is a wide range application set of Bore Gauges that automatically self-centres via a centring bridge and offers you the following benefits:

Carbide for the contact point ensuring high durability and wear resistance
It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	511-925-10
Measuring Range	18-150mm
Resolution	.001mm
Accuracy	["±.002mm"]
Accuracy	+/-.002mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
Measuring Force	≤5N
Repeatability	.0005mm
Probing Depth	100mm/150mm

Inch-Metric:	Metric
Range:	18 - 150 mm
Graduation:	0,001 mm
Measuring depth:	100/150 mm

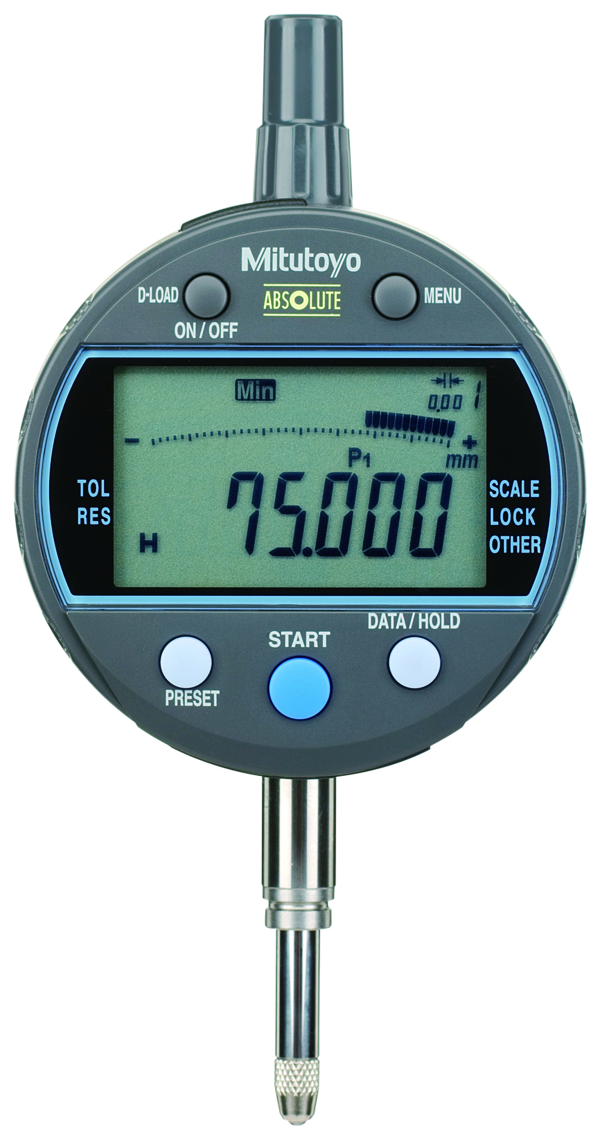

No. Dial Indicator:	543-310B-10
Accuracy:	2 µm
Repeatability:	0.5 µm
Digital/Analog:	Analog

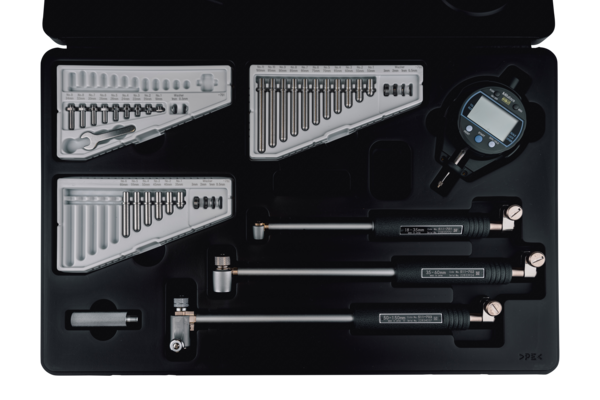

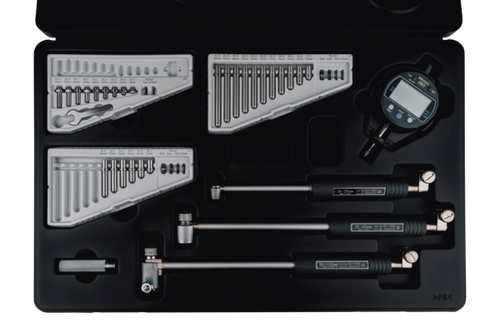

Delivered:	In a box with bore gauge 511-701 / 511-702 / 511-703, digital indicator 543-310B-10, plastic cover for indicator 21DZA000, 26 anvils, 10 washers, 1 sub-anvil, spanner 102148
