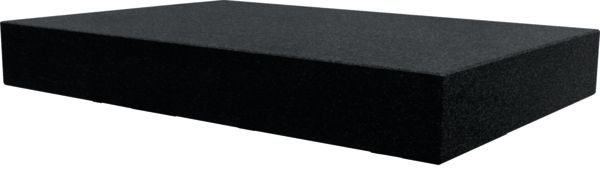

901-135 Granite Surface Plate, DIN 876 Grade 00, 1000x630x100mm
Roll over image to zoom in Click on image to zoom
901-135 Granite Surface Plate, DIN 876 Grade 00, 1000x630x100mm

901-135 Granite Surface Plate, DIN 876 Grade 00, 1000x630x100mm

Mitutoyo SKU: 901-135
Price: €1,614.46 Excluding VAT
Description
  • Surface diamond lapped, side face fine ground, backside fine sawn.
  • The optional stand is a welded construction including 3 or 5-point bearings and two adjusting screws.
  • Delivered with a certificate of inspection
Features
Vickers hardness:
HV 850-900
Flexural strength:

13-22 N/mm2
Compressive strength:

Approx. 280 N/mm2
Linear coefficient of expansion:

(5 - 7.5) x 10-6 x K-1
Dimensions L x W x H:
1000 x 630 x 100 mm
Accuracy:
DIN 876 grade 00
Max. workpiece load:
150 kg
Delivered:
With steel ball inserts and certificate of inspection
Mass:
189 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
