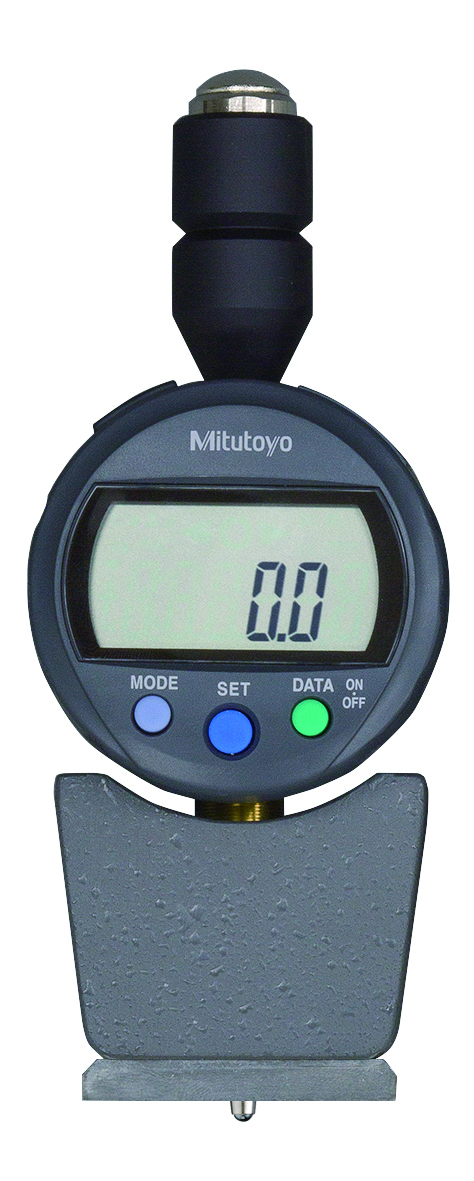

811-330-10 HH-330 Durometer E Compact/Digital Shore E Durometer HH-300 Series 44 x 18 mm

Mitutoyo SKU: 811-330-10

Price: €1,216.87 Excluding VAT
These compact digital/dial durometers in the Shore E scale can test a range of different materials and offer you the following benefits:
  • You can use them for testing the hardness of the materials including soft rubber, elastomers, natural rubber, casting resin, neoprene, polyesters, soft PVC, leather, etc.

Model:
HH-330
Shore Scale:
Shore E
Display:
Digital

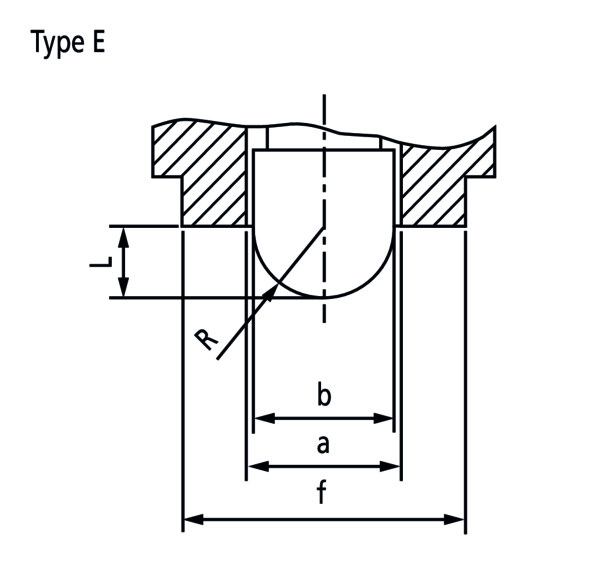

Indenter b:
ø 5 mm
Indenter r:
ø 2,5 mm
Pressure foot a:
ø 5,4 mm
Pressure foot f:
44 x 18 mm
Indenter protrusion:
2,5 mm
Spring force
WE, WA, WD:
WE=550+75 HE [mN]
Dimensions (WxDxH):
147 x 59 x 40 mm
Mass:
0.29 kg
Connector cable for:
HH-300 Series
PIN:
Flat
U-WAVE-T:
02AZD790F
USB-ITN:
06AFM380F
DP-1VA (264-505):
959149
IT-016U 264-016-10 Hardmatic table:
937387

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
