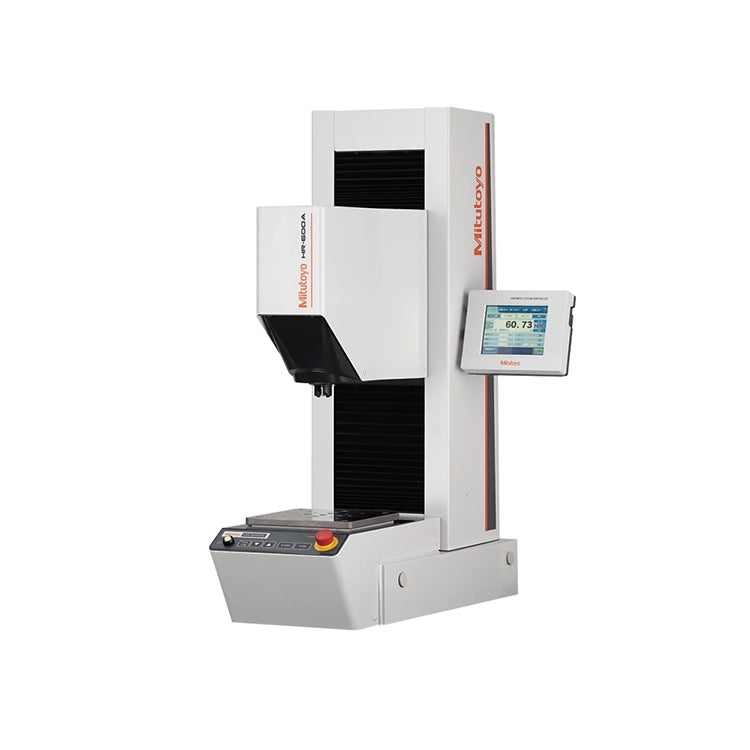

810-522-23 HR-620A mm/inch main unit ISO-JIS-ASTM Rockwell hardness testing machines, indenters and test blocks not included

With innovative design and functionality that enables a wide variety of measurements, the Mitutoyo HR-600 Series delivers hardness testing that defies conventional thinking.

It provides you with the following benefits:

• High-End CNC Rockwell Hardness Testing Machine, providing a fully automatic Rockwell hardness test sequence.
• It is operated either with the provided display unit or by the use of AVPAK 3.1 hardness testing software (11AAE525-DEE AVPAK for HR-600A).
• When run with AVPAK 3.1, it can easily be integrated in an automation cell via the programmable Mitutoyo Form EIO automation interface.
• The HR-600 Series combines the functionality of several test methods:
• Rockwell hardness testing
• Brinell hardness testing (indentation only)
• Brinell depth measurement hardness testing
• Vickers depth measurement hardness testing
• Hardness testing of plastic materials

Rockwell    JIS B 7726:2017, ISO 6508-2:2015, ASTM E18-20
Brinell    JIS B 7724:2017, ISO 6506-2:2017, ASTM E10-18
Plastic    ISO 2039-1:2001
Indentation Brinell    VDI / VDE 2616
Indentation Vickers Hardness    VDI / VDE 2616
Initial test force N (kgf)
Rockwell    29.42 (3) 98.07 (10)
Plastic    9.807 (1)
Indentation Brinell    JIS B 7724:2017, ISO 6506-2:2017, ASTM E10-18
Indentation Vickers Hardness    9.807 (1)
Test force N (kgf)
Rockwell    147.1 (15) 294.2 (30) 441.3 (45) 588.4 (60) 980.7 (100) 1471 (150)
Brinell    9.807 (1) to 2452 (250)
Plastic    49.03 (5) 132.4 (13.5) 358.0 (36.5) 962.1 (98.1)
Indentation Brinell    612.9 (62.5) 1839 (187.5)
Indentation Vickers Hardness    294.2 (30) 490.3 (50)
