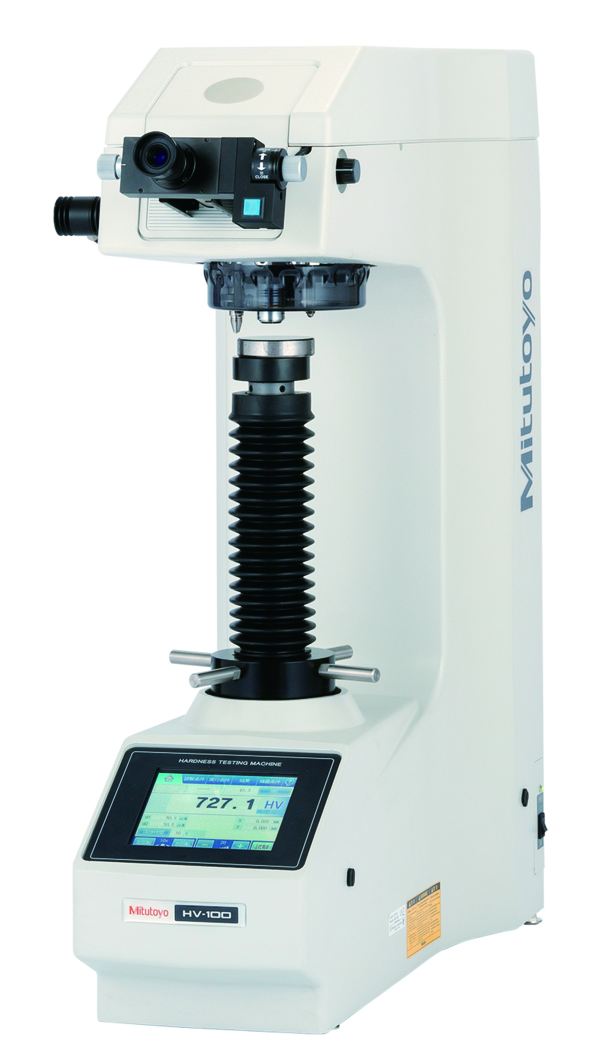

External dimensions
[mm]: |
System A: 307(W)×696(D)×786(H)mm System B/C/D: 307(W)×627(D)×875(H)mm
|
| Objective lens: |
Up to 3 pcs. mountable (one standard lens 10X mounted as standard)
|
| Force dwell time: |
5-999 sec (selectable)
|
| Optical system: |
Infinity corrected optical system
|
| Illumination unit: |
LED light
|
| Test force: |
VS*: HVO,3 / HVO,5 / HV1 / HV2,5 / HV5 / HV10 / HV20 / HV30
N: 2.942 / 4.903 / 9.807 /24,51 / 49,03 / 98,07 / 196,1 /294,2
(KGF): 0,3 / 0,5 / 1 / 2,5 / 5 / 10 / 20 / 30
*VS = Vickers Scala
|
| Standard: |
JIS B 7725, ISO 6507-2
|
| Data output: |
RS-232C, Digimatic, USB 2. 0 interface
|
| Indenter approach speed: |
60 µm/s, 150 µm/s selectable
|
| Control panel: |
Built-in touch panel, 5.7" Color LCD (HM-110A/120A for System A), Control software (PC for System B/C/D)
|
| Functions: |
Calculation of Vickers / Knoop*2 / Brinell*3 hardness, and ceramic fracture toughness based on IF method (JIS R1697),
3 display format (standard, list, simple), GO/NG judgment, test condition guide, curve and user correction,
hardness corresponding value, statistics calculation
|
| Main unit mass: |
HV-110: Approx. 60kg, HV-120: Approx. 58kg
|
| Output: |
Digimatic, serial, USB2.0 series A (for memory)*1, USB2.0 B Type (for system communication)
|
Resolution of
diagonal length
of an indentation: |
Objective lens less than 50X: 0.1μm (Objective lens more than 50X: 0.01μm)
|
Specimen
dimensions: |
System A: height 210mm, depth 170mm (when using flat anvil)
System B: height 181mm, depth 170mm (when using manual XY stage 50X50mm)
System C: height 172mm, depth 170mm, System D: height 132mm, depth 170mm
|
| Test force control: |
Lever method and automatic control (load, duration, unload)
|
| Turret drive: |
Motor driven and manual operation
|
