HM-210 Manual main unit, w.o. power cord Micro Vickers hardness testing machines 810-401D-ASET

Mitutoyo SKU: 810-401D-ASET
Price: €14,820.00 Excluding VAT

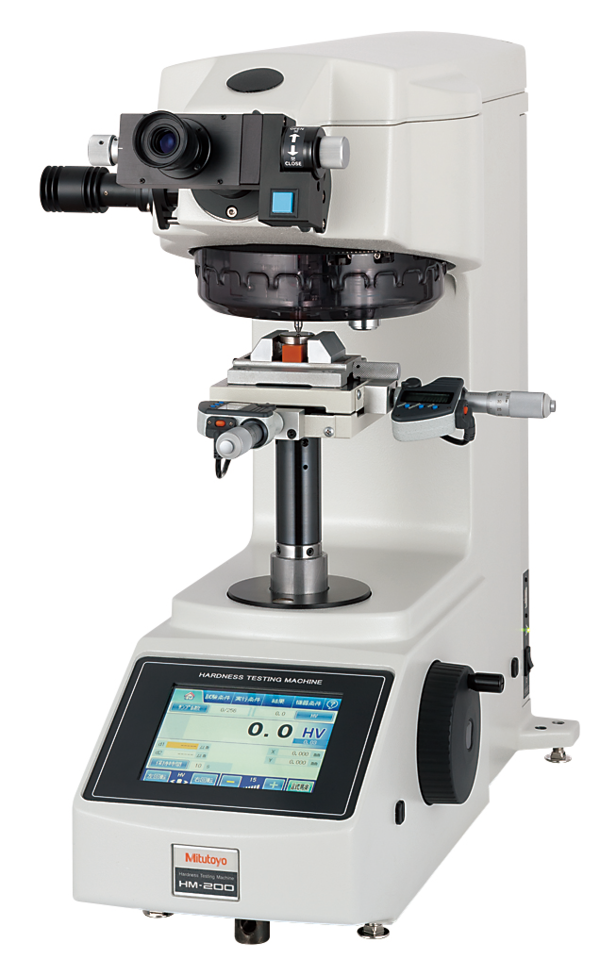

This is a high performance hardness testing machine that uses advanced technology and is ideal for quality control.
The manual line up of the HM-200 Series has the following benefits:

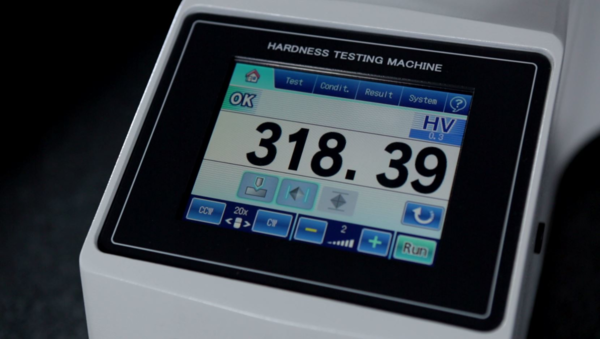

  • 144 mm (5.7 inch) colored touchsreen display (Type A) with higher visibility, easy to operate user interface
  • Digimatic output for report creation.
  • USB stick data export
  • Electromagnetic test force generation system for higher accuracy.
  • A high performance optical system provides a high quality image of the indentation load.
  • A long working distance greatly reduces the possibility of collision.
  • A range of six different objectives: 2x, 5x, 10X, 20X, 50X and 100X for measuring the indentation images.
  • LED lighting gives you an observation image in natural colour, with better contrast, as well as longer operation.
  • You can set different kinds of conditions on a touch panel, and display test results for easy operation.
  • Vickers, Knoop and KC fracture toughness measurement.
  • Test force ranges from 0,05g to 2,0kg.
Features

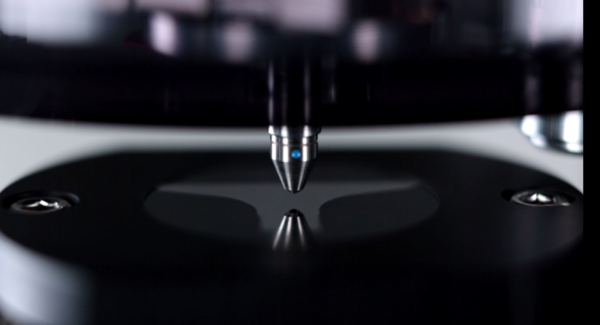

Indenter /
Objective turret:
Motor driven and manual operation
Standard:
ISO 6507-2, ISO 4545-2, JIS B 7725
Data output:
RS-232C, Digimatic, USB 2 interface
Arbitrary
test force:
up to HV0,05 settable in HV0,001 increments, from HV0,05 settable in HV0,01 increments
Functions:
Calculation of Vickers / Knoop*2 hardness, and ceramic fracture toughness based on IF method (JIS R1697), 3 display format (standard, list, simple), GO/NG judgment, test condition guide, curve and user correction, hardness corresponding value, statistics calculation
Objective lens unit:
Up to 4 pcs. mountable (one mounted 50X as standard)
Output:
Digimatic, serial, USB2.0 series A (for memory)*1,
USB2.0 B Type (for system communication)
Resolution of
diagonal length
of an indentation:
Objective lens less than 50X: 0.1μm (Objective lens more than 50X: 0.01μm)
Test force control:
Electromagnetic generation of force (force motor) and automatic control (load, duration, unload)
Turret drive:
Motor-driven and manual operation
Contents
Single indenter configuration
HM-210 A-Type set
Code No.: 810-401D-ASET
810-401D Manual main unit HM-210
11AAC106 10x Objective lens
02ALP500 50x Objective lens, Standard lens
810-420 Manual XY stage 25x25mm

No technical information is currently available.

No application information is currently available.
