HR-430MR main unit ISO-JIS-ASTM Rockwell hardness testing machines, indenters and test blocks not included 810-193-31

Mitutoyo SKU: 810-193-31
Price: €9,951.81 Excluding VAT

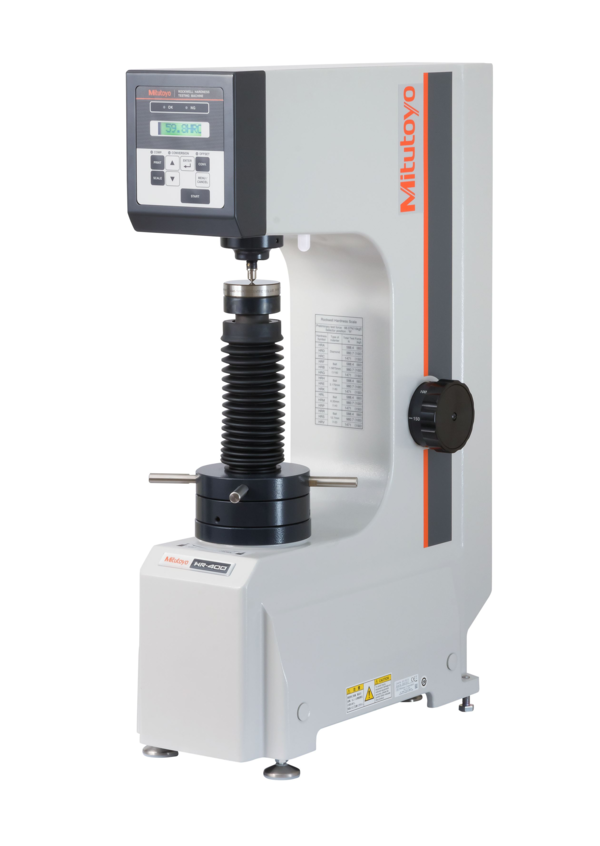

The HR-430MR is an economical Rockwell hardness testing machine to suit practically every application you need. The MR indicates the Rockwell testforce range.
It offers you the following benefits:
  • The frame was designed with great care to provide maximum clearance for positioning the work piece. All you need is a flat table for mounting these testing machines.
  • Its outstanding robustness makes it perfect for even the roughest environments.

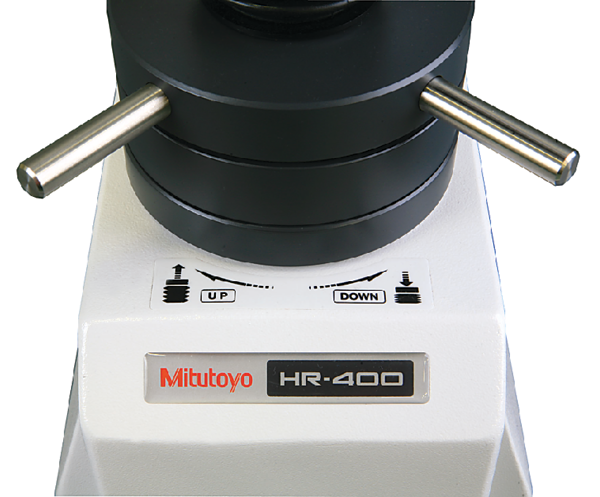

  • The HR-430MR is very simple to operate. It uses automatic steering wheel braking and load sequencing for easy handling.
  • You can attach the clamping device K543817 to for safe operation with hard to handle workpieces.
  • This digital model can use our Digimatic Mini-processor (DP-1VR) for printing results, and you can use an input tool (USB-ITN-E) to connect to a PC for data transfer, analysis and storage.
  • You can perform Brinell hardness tests, as indicated, by using the following optional accessories:
    a Brinell indenter and a measurement microscope.
Specification
Standard:
JIS B 7726; ISO6508-2; ASTM E18
Preliminary test force (N):
98,07
Test force Superficial (N):
-
Test force Rockwell (N):
588,4; 980,7; 1471
Model:
HR-430MR
Rockwell Scale Diamond:
HRA; HRD; HRC
Rockwell Scale Ball 1,5875 mm :
HRFW; HRBW; HRGW
Rockwell Scale Ball 3,175 mm :
HRHW; HREW; HRKW
Rockwell Scale Ball 6,35 mm :
HRLW; HRMW; HRPW
Rockwell Scale Ball 12,7 mm :
HRRW; HRSW; HRVW
Description:
The HR-430MR is an economical Rockwell hardness testing machine to suit practically every application you need. The MR indicates the Rockwell testforce range.
It offers you the following benefits:
  • The frame was designed with great care to provide maximum clearance for positioning the work piece. All you need is a flat table for mounting these testing machines.
  • Its outstanding robustness makes it perfect for even the roughest environments.
  • The HR-430MR is very simple to operate. It uses automatic steering wheel braking and load sequencing for easy handling.
  • You can attach the clamping device K543,817 to for safe operation with hard to handle workpieces.
  • This digital model can use our Digimatic Mini-processor (DP-1VR) for printing results, and you can use an input tool (USB-ITN-E) to connect to a PC for data transfer, analysis and storage.
  • You can perform Brinell hardness tests, as indicated, by using the following optional accessories:
    a Brinell indenter and a measurement microscope.
Resolution:
0,1 HR indication
Test force selection:
Dial switching
Test force application:
Automatic
Test force duration:
Settable 1-99s.

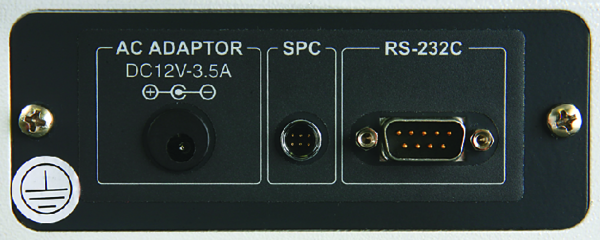

Data output:
Digimatic (SPC), RS-232C
Height:
Max. 180 mm (100 if cover is attached) mm
Measuring depth:
Max. 165 mm (from the center of the endenter axis)
Functions:
GO/NG, Hardness value offset, Hardness conversion, Data output, Calibration mode

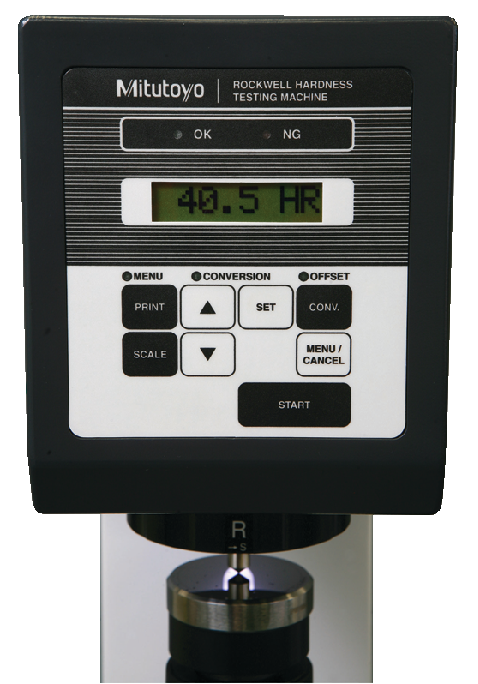

Display Unit:
Matrix backlight LCD
Main unit dimensions:
214x512x780mm
Brinell Scales indentation only Ball 1,0 mm:
HBW 1/10; HBW 1/30 - nur Eindruck (nicht normgerecht durch Anwendung der Prüfvorkraft)
Brinell Scales indentation only Ball 10,0 mm:
HBW 10/100 - nur Eindruck (nicht normgerecht durch Anwendung der Prüfvorkraft)
HR unit resolution:
0,1 HR
Jominy-test capability:
Additional accessories required
Workpiece clamping device K543817 capability:
Serial
Anvil adaption:
Ø 19mm
Max. specimen height:
180 mm
Throat depth:
165 mm
Max. specimen weight:
20 kg
Approx. mass main unit:
49,3 kg
Gross Weight:
70,000 [gram]
Standard accessories:
810-39 Flat anvil Ø64mm
810-40 V-anvil outside diameter Ø40mm groove width 30mm
11AAB941 Water level
383876 Vinyl cover
357651 AC adaptor

Indenters, reference materials and power cord not included
Net weight:
49,300 [gram]

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
