HR-210MR main unit Rockwell hardness testing machine, 810-191-21
HR-210MR main unit Rockwell hardness testing machine, 810-191-21
HR-210MR main unit Rockwell hardness testing machine, 810-191-21
HR-210MR main unit Rockwell hardness testing machine, 810-191-21
Roll over image to zoom in Click on image to zoom
HR-210MR main unit Rockwell hardness testing machine, 810-191-21HR-210MR main unit Rockwell hardness testing machine, 810-191-21HR-210MR main unit Rockwell hardness testing machine, 810-191-21HR-210MR main unit Rockwell hardness testing machine, 810-191-21

HR-210MR main unit Rockwell hardness testing machine, 810-191-21

Mitutoyo SKU: 810-191-21
Price: €5,650.60 Excluding VAT

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Adjustable support for long workpieces Hardness testing machines 810-027
Part number: 810-027  → View product
Adjust. specimen holder Ø15-30mm Micro Vickers hardness testing machines 810-020
Part number: 810-020  → View product
Height adjustable jack rest Hardness testing machines 810-028
Part number: 810-028  → View product
Diamond spot anvil for Rockwell Superficial scales only 810-030
Part number: 810-030  → View product
Round Table 180mm Ø Hardness testing machines 810-037
Part number: 810-037  → View product
Round Table 250mm Ø Hardness testing machines 810-038
Part number: 810-038  → View product
V-anvil large groove length 40 mm, Ø15 mm- Ø60 mm 810-040
Part number: 810-040  → View product
Spot anvil Ø12 mm Hardness testing machines 810-043
Part number: 810-043  → View product
Steel table for Rockwell hardness testing machines 810-048
Part number: 810-048  → View product
Stepped spot anvil Ø5.5 mm Step height 13 mm hardness testing machines 810-044
Part number: 810-044  → View product
Stepped V-anvil, step height 13 mm groove length 10 mm, Ø4mm- Ø16 mm 810-042
Part number: 810-042  → View product
V-anvil small groove length 40 mm, Ø3 mm- Ø9 mm 810-041
Part number: 810-041  → View product
810-700 Jominy positioning table, metric (End quench test) Hardness testing machines
Part number: 810-700  → View product
Part number: 937387L  → View product
Mitutoyo Digimatic Cable, Round 6-Pin Type 965013
Part number: 965013  → View product
U-WAVE Connection Cable E Round 6-Pin Type 02AZD790E
Part number: 02AZD790E  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380E
Part number: 06AFM380E  → View product
EXPAK-07 data processing program HR-500 Rockwell hardness testing machines 11AAC237
Part number: 11AAC237  → View product
hese are four economical Rockwell hardness testing machines to suit practically every application you need.
The Rockwell HR-200/300/400 offers you the following benefits:
  • The newly designed frame provides maximum clearance for positioning the work piece, all you need is a flat table for mounting these testing machines.
  • They are very simple to operate: the analogue type HR-210 uses an automatic presetting dial gauge.
  • Digital models HR-430MR/MS use automatic steering wheel braking and load sequencing for easy handling.
  • Digital models HR-320MS and HR-430MR/MS can use our Digimatic Mini-processor (DP-1VR) for printing results, and you can use an input tool (USB-ITN-E) to connect to a PC for data transfer, analysis and storage.
  • You can perform Brinell hardness tests by using the following optional accessories:
    a Brinell indenter, a weight set and a measurement microscope.
Specification
Standard:
JIS B 7726, ISO 6508-2
Preliminary test force (N):
98,07
Test force Rockwell (N):
588,4; 980,7; 1471
Model:
HR-210MR
Rockwell Scale Diamond:
HRA; HRD; HRC
Rockwell Scale Ball 1,5875 mm :
HRFW; HRBW; HRGW
Rockwell Scale Ball 3,175 mm :
HRHW; HREW; HRKW
Rockwell Scale Ball 6,35 mm :
HRLW; HRMW; HRPW
Rockwell Scale Ball 12,7 mm :
HRRW; HRSW; HRVW
Description:

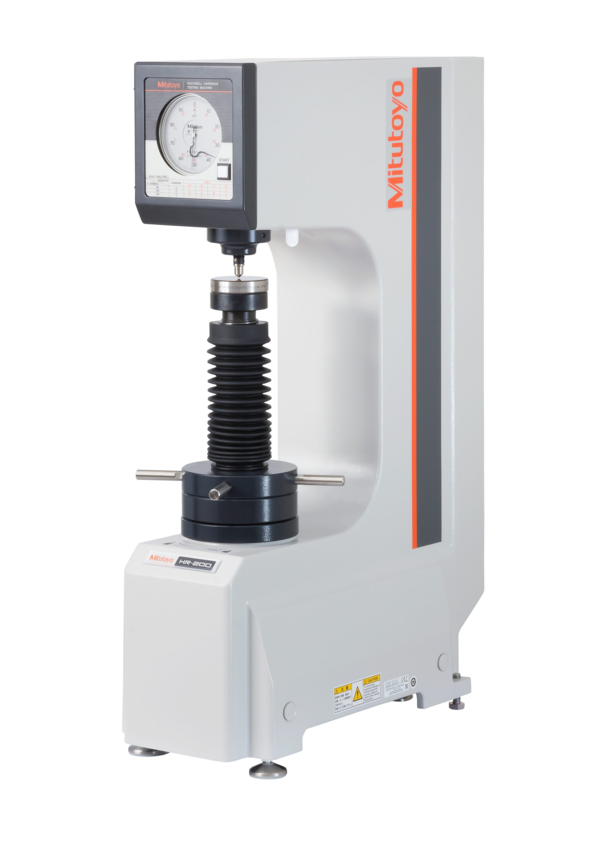

The HR-210MR is an economical Rockwell hardness testing machine to suit practically every application you need. The MR indicates the Rockwell testforce range.
It offers you the following benefits:
  • The frame was designed with great care to provide maximum clearance for positioning the work piece. All you need is a flat table for mounting these testing machines.
  • Its outstanding robustness makes it perfect for even the roughest environments.
  • You can attach the clamping device K543,817 to for safe operation with hard to handle workpieces.

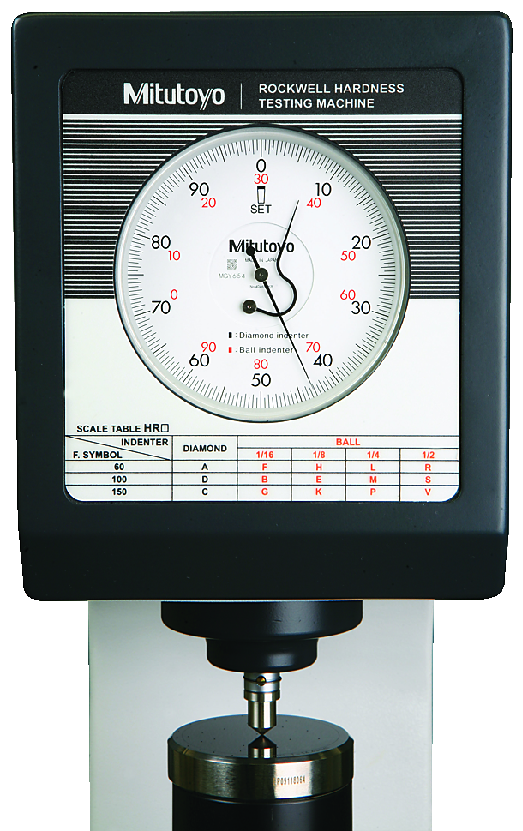

  • The analogue type HR-210MR uses an automatic presetting dial gauge which makes it easy to operate.
  • You can perform Brinell hardness tests, as indicated, by using the following optional accessories:
    a Brinell indenter and a measurement microscope.
Resolution:
0,5 HR graduation
Test force selection:
Manual weight exchange
Test force application:
Semi-automatic
Test force duration:
Fixed 3-5-5 sec. or manual
Height:
Max. 180 mm (100 if cover is attached) mm
Measuring depth:
Max. 165 mm (from the center of the indenter axis)
Functions:
To observe the hardness number within 0,2 HR of the scale unit, as required by ISO 6508-2, the displayed result is to be judged by the dial hand width within the step of the dial gage scale.
Display Unit:
Analogue dial indicator
Main unit dimensions:
214x512x780mm
Brinell Scales indentation only Ball 1,0 mm:
HBW 1/10; HBW 1/30 - indentation only (not according to standard)
Brinell Scales indentation only Ball 10,0 mm:
HBW 10/100 - indentation only (not according to standard)
HR unit resolution:
0,5 HR
Jominy-test capability:
Additional accessories required
Workpiece clamping device K543817 capability:
Serial
Anvil adaption:
Ø 19mm
Max. specimen height:
180 mm
Throat depth:
165 mm
Max. specimen weight:
20 kg
Approx. mass main unit:
47 kg
Gross Weight:
69,000 [gram]
Standard accessories:
810-039 Flat anvil Ø64mm
810-040 V-anvil outside diameter Ø40mm groove width 30mm
11AAB941 Water level
383876 Vinyl cover
357651 AC adaptor

Indenters, reference materials and power cord not included
Net weight:
45,600 [gram]
