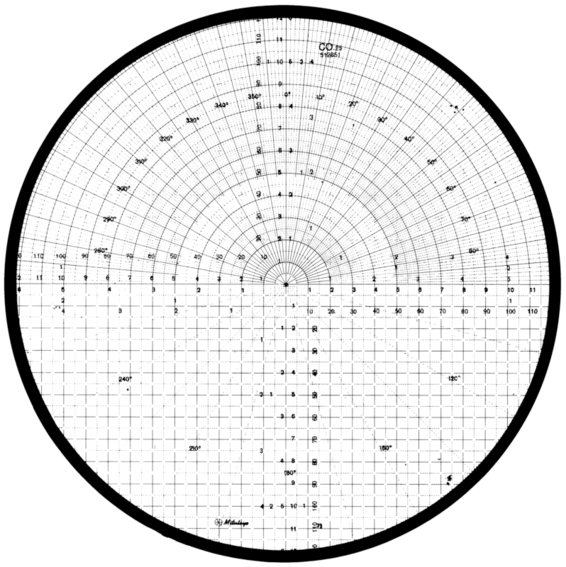

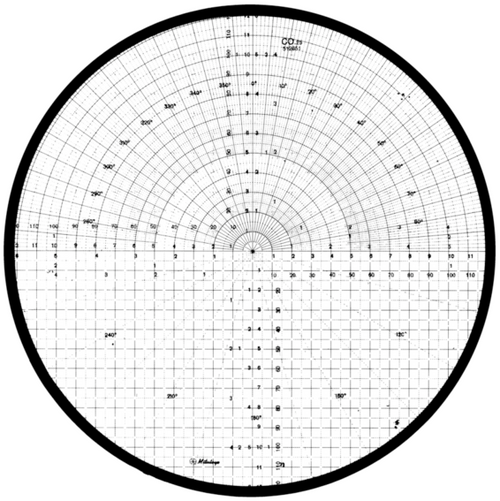

For measuring projectors. These standard overlay charts increase the range of application and the efficiency of profile projectors. This chart set offers you the following benefits:
The charts are supplied in sizes Ø250, 300, 340, 500 and 600mm to suit the screens of projectors.
A large range of scales and profiles is provided that enables you to test workpiece features quickly and easily. You can test length, height, parallelism, angle, radius, taper, bore position, diameter, as well as all stzndardized thread and tooth profiles.
All charts are made of a distortion-free special plastics compound and are provided with a protective sleeve.
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
