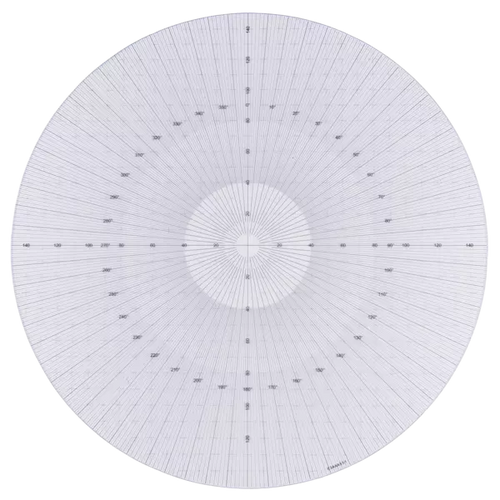

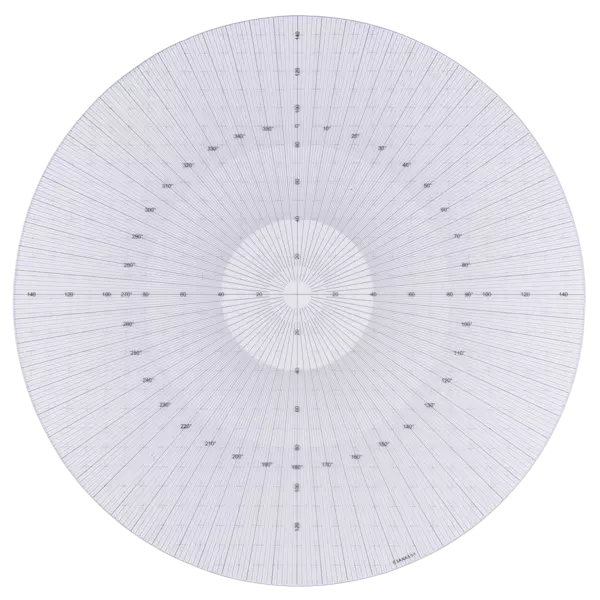

63AAA545 Protractor chart ø 250 mm Overlay chart for measuring projector
Roll over image to zoom in Click on image to zoom
63AAA545 Protractor chart ø 250 mm Overlay chart for measuring projector

63AAA545 Protractor chart ø 250 mm Overlay chart for measuring projector

Mitutoyo SKU: 63AAA545
Price: €322.89 Excluding VAT

For measuring projectors
These standard overlay charts increase the range of application and the efficiency of Mitutoyo profile projectors.
This chart set offers you the following benefits:
- The charts are supplied in sizes ø250, 300, 340, 500 to suit the screens of Mitutoyo projectors.
- A large range of scales and profiles is provided that enables you to test workpiece features quickly and easily. You can test length, height, parallelism, angle, radius, taper, bore position, diameter,
as well as all standardized thread and tooth profiles.

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
