Support for Clean, Intuitive Design
The user interface design of the M2 software means you’ll spend more time measuring and less time reading manuals. By combining a familiar user experience with current touch screen conventions, the M2 software can quickly be integrated into your process and be accessible to a wide range of users.
Advanced crosshair probe toolbox

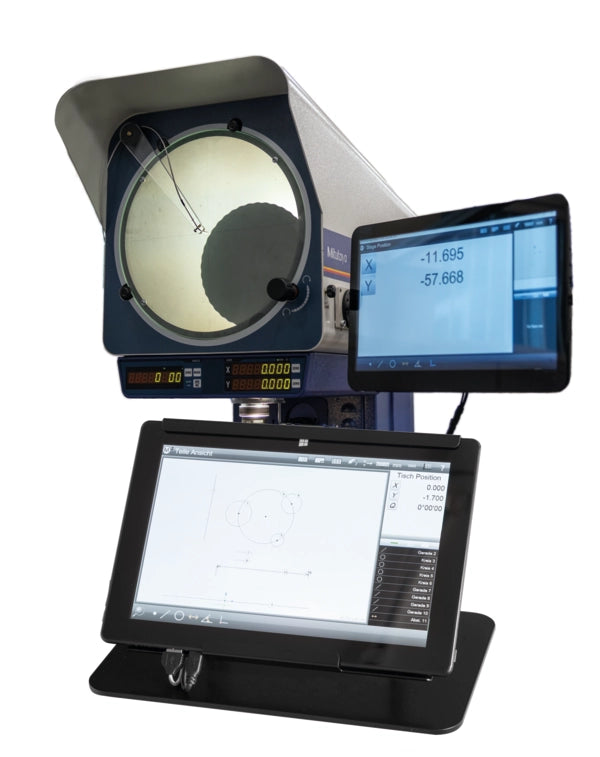

For Optical Edge enabled systems, both “simple” and “auto edge” crosshair probes are available. The “auto edge” probe captures points on edges automatically upon crossing. The M2’s EdgeLogic™ system (Optical Edge enabled systems only) enables gesture-driven control of start and end measurement commands. Start and finish measurements quickly, without the need for direct software interaction.
Designed for Multi-Touch software control
In addition to the conventional mouse interface, expanded Multi-Touch logic allows for versatile pan and zoom of the active part view. Increase the efficiency of feature construction, feature data manipulation, and reporting tasks with a simple pinch zoom, swipe pan, or double click.

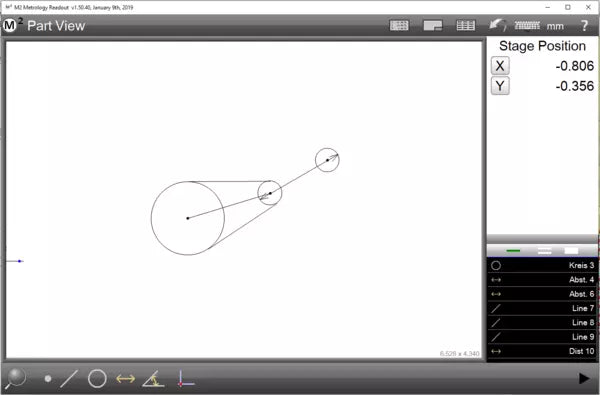

Graphics-based “Part View” constructions
Generate popular construction types, like Distances and Tangent Lines, from within the graphical part view itself. Constructions with multiple sub-types can be toggled quickly with the change feature type command.
Supported construction types include:
Average
Intersections
Tangent Line(s)
Angle Compliments
Offset Skew Lines
Mid/Center Point(s)
Shortest Distance
Gage Circle(s)
Perpendicular/Parallel Line(s)
End Point(s)
Farthest Distance
Bolt Circle
