Linear Scale AT715 250mm 539-804N
Linear Scale AT715 250mm 539-804N
Roll over image to zoom in Click on image to zoom
Linear Scale AT715 250mm 539-804NLinear Scale AT715 250mm 539-804N

Linear Scale AT715 250mm 539-804N

Mitutoyo SKU: 539-804N
Price: €365.06 Excluding VAT
This linear scale is based on electro magnetic induction principle thus offering you high enviroment protection IP level, in the mean time reference point is not necessary after  each power on.

Only compatible with KA series display units.
Features
Measuring method:
Electromagnetic
induction system
Accuracy:
100 to 500 mm ±5 µm;
600 to 1800 mm ±7 µm;
2000 to 3000 mm ±10 µm
Max. drive speed:
50 m/min
Signal period:
20 µm
Resolution:
0,001 / 0,005 (switchable via KA- KLD counters)

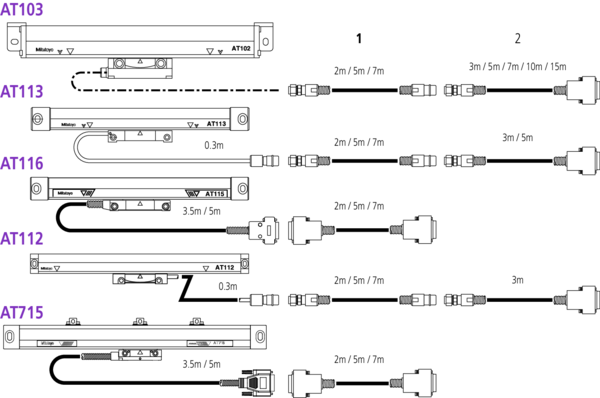

Cable length:
3.5 m
Effective Length:
250 mm
Mass:
0.85 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Linear Scale AT715 250mm 539-804N Click to open the PDF document
