Mitutoyo SKU: 539-219-40
Price: €1,614.46 Excluding VAT

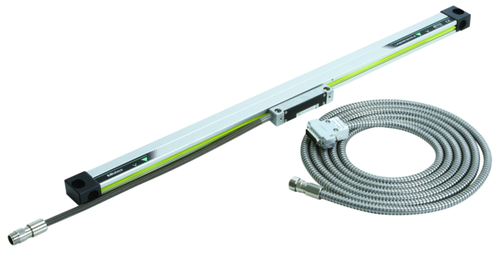

These linear scales are built for limited installation space
  • Glass scale - Zero not coded
  • Expansion factor (8 ± 1)x 10-6/K-1

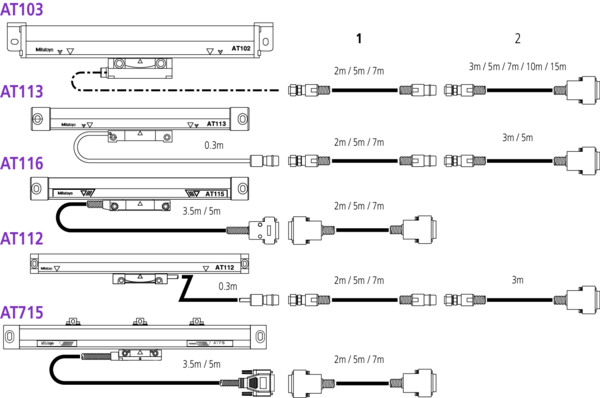

  • An armoured inox signal cable is used to connect the DRO counter
Features
Accuracy:
High-accuracy type
(3+3L/1000) µm
L = Effective range (mm)
Output waveform:
Two 90° phase-shifted sinusoidal signals
Max. drive speed:
120 m/min
Signal period:
20 µm
Scale reference points:
50 mm
Dust/water protection level:
IP53
Cable length:
5 m
Effective Length:
1,200 mm
Mass:
2 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
