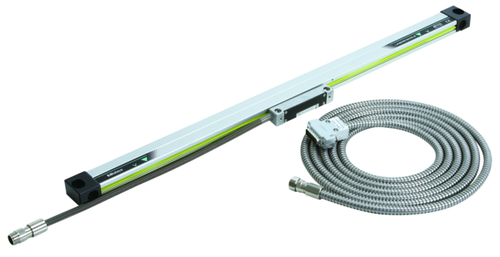

Linear Scale AT113F 800mm 539-215-40

Name: Linear Scale AT113F 800mm 539-215-40
Brand: Mitutoyo
SKU: 539-215-40
Price: 1313.25 EUR
Availability: InStock

MitutoyoSKU: 539-215-40

Price:

€1,313.25

Quantity:

These linear scales are built for limited installation space

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Accuracy:	High-accuracy type (3+3L/1000) µm L = Effective range (mm)
Output waveform:	Two 90° phase-shifted sinusoidal signals
Max. drive speed:	120 m/min
Signal period:	20 µm
Scale reference points:	50 mm
Dust/water protection level:	IP53

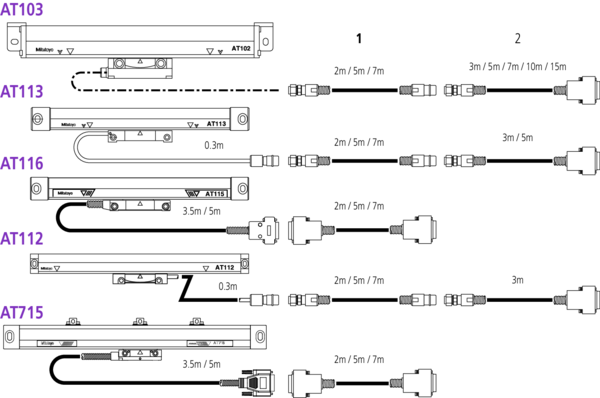

Cable length:	3.5 m
Effective Length:	800 mm
Mass:	1.4 kg
