Linear Scale AT103 3250mm 539-143-30

Mitutoyo SKU: 539-143-30
Price: €4,457.83 Excluding VAT

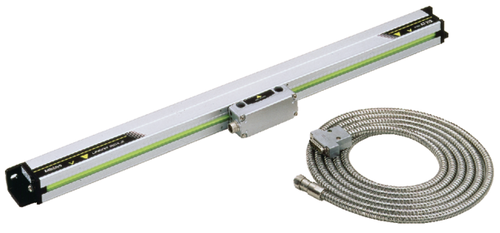

These linear scales offer : Sturdy construction-high resistance to vibration-protection rating are similar in upright and reclining position
  • The innovative rubber lips keep out contaminants when you are using the scale in a machine shop.

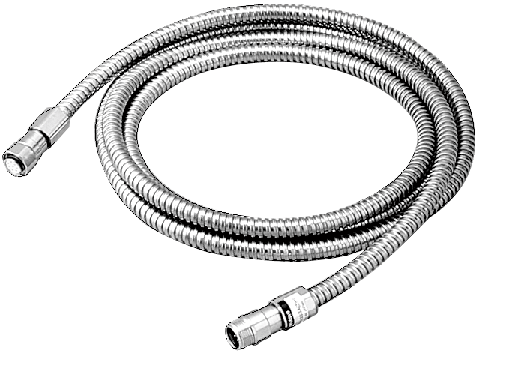

  • An armoured signal cable is used to connect the scale unit to the DRO counter, so you can operate it safely even in hostile environments.
  • The signal cable outlet can be positioned on either side of the slider so you can connect the signal cable from either direction.
Specification
Accuracy:
100 to 3000 mm
(5+5L/1000) µm
3250 to 6000 mm
(5+8L/1000) µm
L = Effective range (mm)

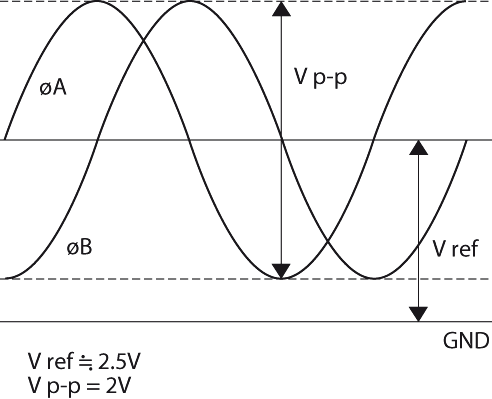

Output waveform:
Two 90° phase-shifted sinusoidal signals
Max. drive speed:
120 m/min.
Signal period:
20 µm
Scale reference points:
every 50 mm
Dust/water protection level:
IP53
Cable length:
7 m
Effective Length:
2,600 mm
Mass:
7.5 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
