Mitutoyo SKU: 518-240
Price: €3,867.47 Excluding VAT

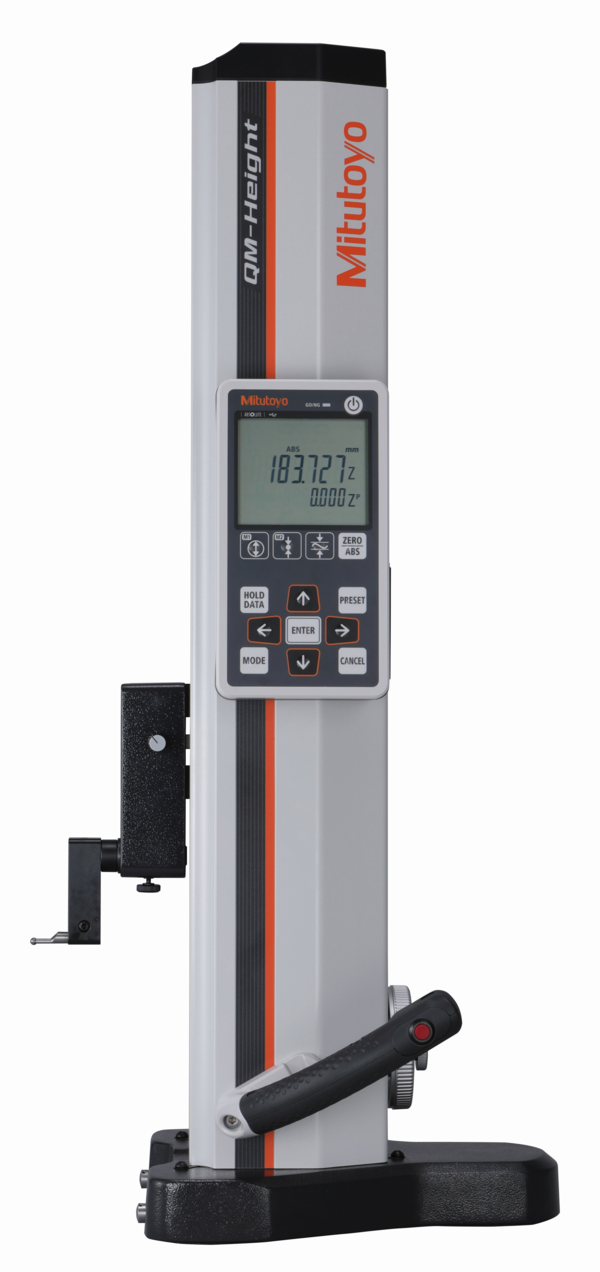

DescriptionThis is a high precision ABSOLUTE Digital Height Gauge that offers you the
following benefits:
  • It has a high accuracy, high resolution ABSOLUTE linear encoder for
    position detection.
  • Types with and without pneumatic drive mechanism.
  • Automatic running of prelearnt part programs.
  • You can easily implement frequently used measurements, such as inside/outside diameter and pitch calculations, by icon-based commands that also support easy one-key operation.
  • Extraordinary battery life.
  • GO/±NG judgement is performed by setting the upper and lower tolerances.
Features
Digital/Analog:
Digital
Range:
0-350 mm
Digital step:
0.001 mm/0.005 mm
Accuracy:
±(2,4+2,1L/600) µm
L = Measuring length (mm)
Perpendicularity:
7 µm
Air floating:
no
Scale:
ABSOLUTE electromagnetic inductive

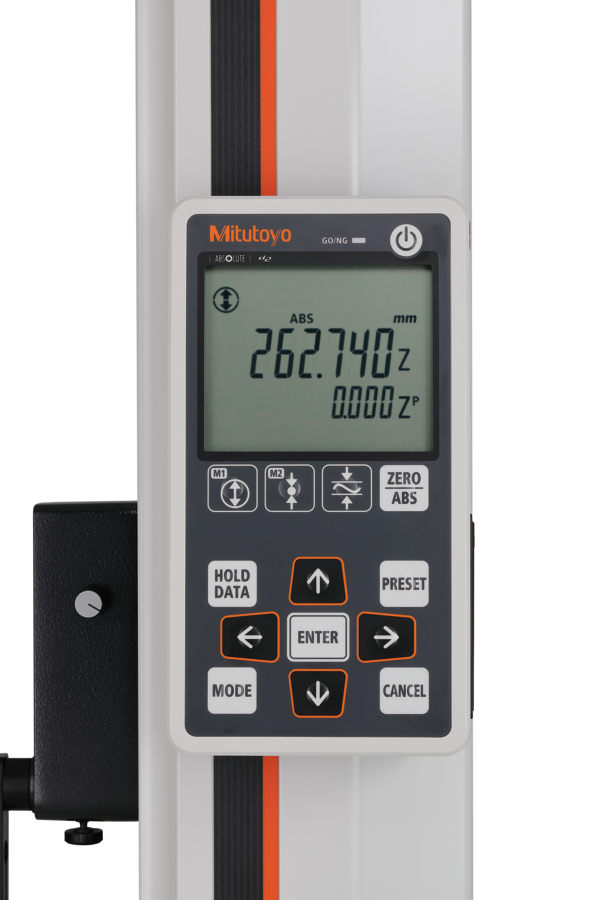

Display:
TN monochrome LCD
Measuring function:
1D measurement: height diameter, pitch, Max/Min/TIR (Max-Min), tolerance, preset, data memory
Drive method:
Manual
Guiding method:
Roller bearing
Inch-Metric:
Metric
Delivered:
Including 4 batteries, setting block, ball offset probe
Power supply:
Alkaline battery size AA LR6 (4pcs.), rechargeable battery size AA Ni-MH (4pcs.),
AC-Adapter (optional)
Battery life:
Approx. 1200 h
(without air floating)
Approx. 90 h (with air floating)
Mass:
25 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
