Check Master 0-24,5" 515-712
Roll over image to zoom in Click on image to zoom
Check Master 0-24,5" 515-712

Check Master 0-24,5" 515-712

Mitutoyo SKU: 515-712
Price: €3,445.78 Excluding VAT

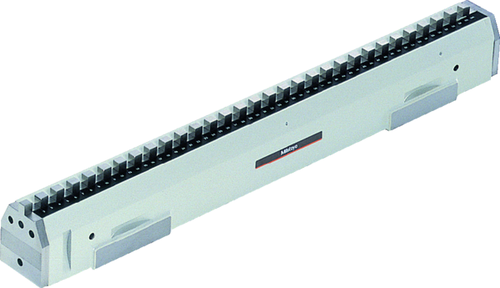

This Check Master allows you to test precision tool and coordinate measuring machines, and offers you the following benefits:
  • You can test the X, Y and Z-coordinate axes of precision tool machines and coordinate measuring machines.
  • It consists of rigidly clamped gauge blocks with a step of 10mm.
  • It is supplied in a fitted wooden case.
Features
Inch-Metric:
Inch
Range:
0 - 24,5 "
Block step:
0.5" straight
Block pitch accuracy:
Range ≤ 310 mm: ±2,5 µm
310 < range ≤ 610 mm: ±3,5 µm
610 < range ≤ 1010 mm: ±5,0 µm
1010 < range ≤ 1510 mm: ±8,0 µm
Parallelism of blocks:
Range ≤ 310 mm:
1,2 µm
310 < range ≤ 610 mm:
1,5 µm
610 < range ≤ 1010 mm:
2,0 µm
1010 < range ≤ 1510 mm:
2,5 µm
Hardness:
> 64 HRC
Delivered:
In a wooden case with certificate of inspection
Mass:
13 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
