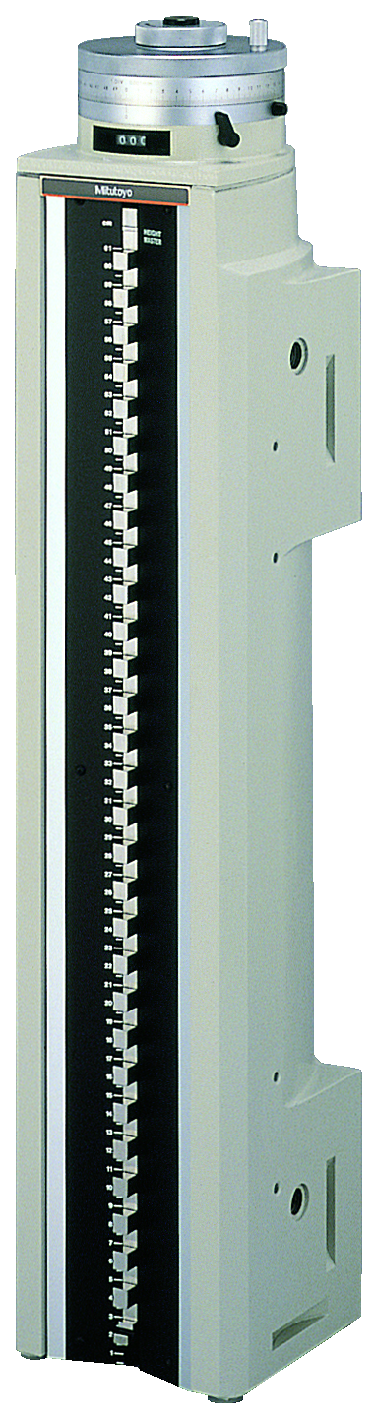

Universal Height Master 5-1010mm 515-523
Universal Height Master 5-1010mm 515-523
Universal Height Master 5-1010mm 515-523
Roll over image to zoom in Click on image to zoom
Universal Height Master 5-1010mm 515-523Universal Height Master 5-1010mm 515-523Universal Height Master 5-1010mm 515-523

Universal Height Master 5-1010mm 515-523

Mitutoyo SKU: 515-523
Price: €13,638.55 Excluding VAT
This height master offers you the following benefits:

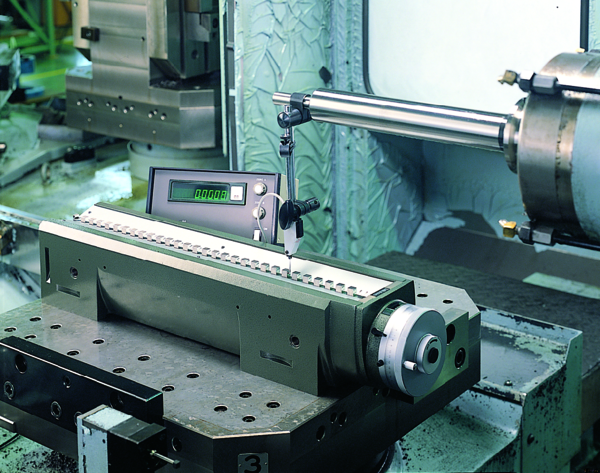

  • You can use it to calibrate and set height gauges and other measuring instruments.
  • Models with the staggered arrangement of blocks have two measuring faces on the same level, one facing up and the other down.
  • It is supplied in a fitted wooden case.
Features
Range:
5 - 1,010 mm
Graduation:
0.001 mm
Block step:
10 mm straight
Feed error:
±1.5 µm
Inch-Metric:
Metric
Retrace error:
1.5 µm
Micrometer adjustment:
20 mm
Micrometer feed:
0.5 mm
Block pitch accuracy:
Range ≤ 310 mm: ±1.5 μm
310 < range ≤ 610 mm: ±2.5 μm
610 < range ≤ 1010 mm: ±3.5 μm
Parallelism of blocks:
Range ≤ 610 mm: 1,5 μm
610 < range ≤ 1010 mm: 2 μm
Delivered:

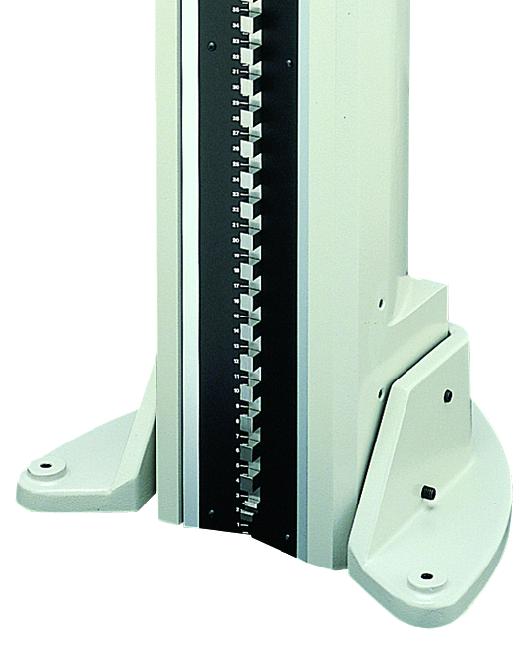

In a wooden case with certificate of inspection, supporting base 900574
Mass:
63.5 kg
