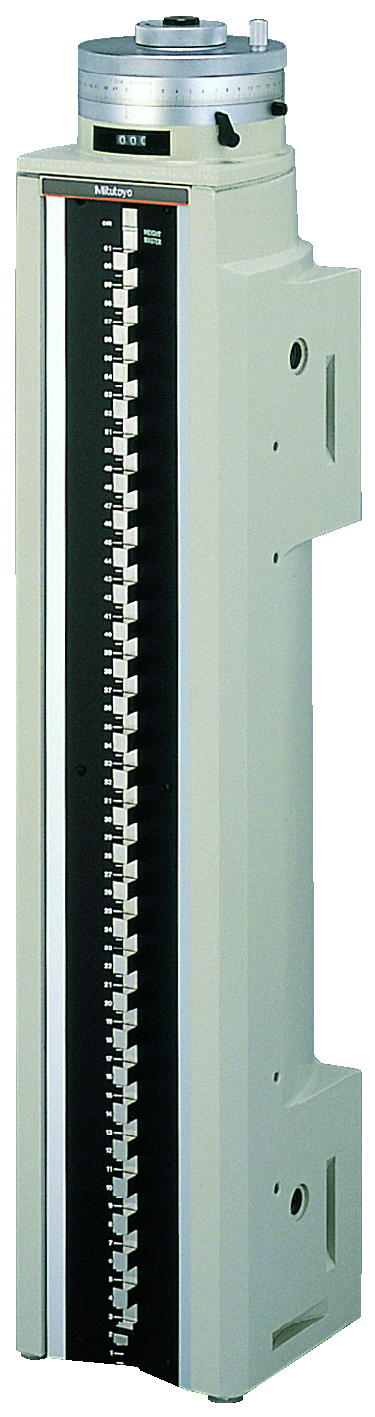

Universal Height Master 0,2-18,2" 515-512
Universal Height Master 0,2-18,2" 515-512
Universal Height Master 0,2-18,2" 515-512
Roll over image to zoom in Click on image to zoom
Universal Height Master 0,2-18,2" 515-512Universal Height Master 0,2-18,2" 515-512Universal Height Master 0,2-18,2" 515-512

Universal Height Master 0,2-18,2" 515-512

Mitutoyo SKU: 515-512
Price: €8,674.70 Excluding VAT
This height master offers you the following benefits:
  • You can use it to calibrate and set height gauges and other measuring instruments.
  • Models with the staggered arrangement of blocks have two measuring faces on the same level, one facing up and the other down.
  • It is supplied in a fitted wooden case.
Features
Block step:
0.5" straight
Feed error:
±40 µin
Inch-Metric:
Inch
Retrace error:
40 µin
Range:
0.2 - 18.2 "
Micrometer adjustment:
20 mm
Micrometer feed:
0.5 mm
Block pitch accuracy:
Range ≤ 310 mm: ±1.5 μm
310 < range ≤ 610 mm: ±2.5 μm
610 < range ≤ 1010 mm: ±3.5 μm
Parallelism of blocks:
Range ≤ 610 mm: 1,5 μm
610 < range ≤ 1010 mm: 2 μm
Delivered:
In a wooden case with certificate of inspection
Mass:
42 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
