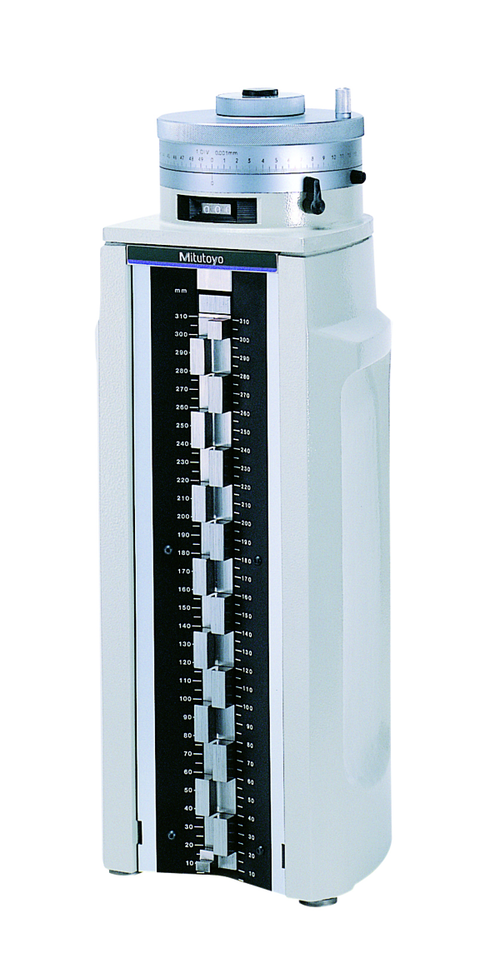

Universal Height Master 5-310mm, Block Step 20mm staggered 515-322

Mitutoyo SKU: 515-322
Price: €3,867.47 Excluding VAT

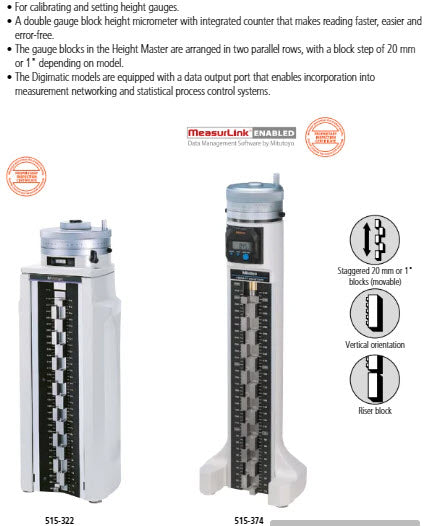

This Universal Height Master offers you the following benefits:
  • It is designed for both vertical and horizontal orientations, enabling you to carry out a wide range of applications such as accuracy checking of machine tool table movements.
  • It is supplied in a fitted wooden case.

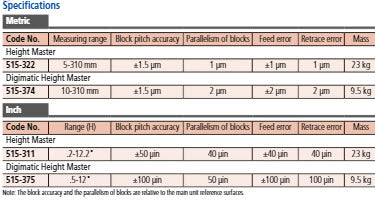

Features

Range:
5 - 310 mm
Graduation:
0.001 mm
Inch-Metric:
Metric
Block step:
20 mm staggered
Feed error:
±1 µm
Retrace error:
1 µm

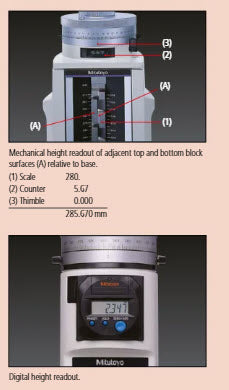

Micrometer adjustment:
20 mm
Micrometer feed:
0.5 mm
Block pitch accuracy:
±1.5 µm
Parallelism of blocks:
1 µm
Delivered:
In a wooden case with certificate of inspection
Mass:
23 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
