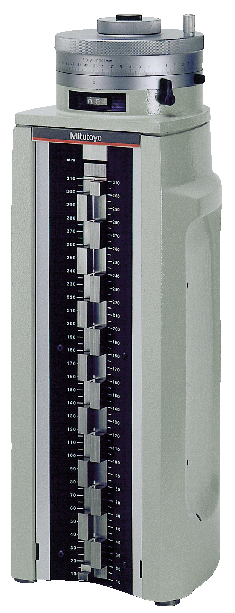

Universal Height Master 0,2-12,2", Block Step 1" staggered 515-311
Universal Height Master 0,2-12,2", Block Step 1" staggered 515-311
Universal Height Master 0,2-12,2", Block Step 1" staggered 515-311
Universal Height Master 0,2-12,2", Block Step 1" staggered 515-311
Roll over image to zoom in Click on image to zoom
Universal Height Master 0,2-12,2", Block Step 1" staggered 515-311Universal Height Master 0,2-12,2", Block Step 1" staggered 515-311Universal Height Master 0,2-12,2", Block Step 1" staggered 515-311Universal Height Master 0,2-12,2", Block Step 1" staggered 515-311

Universal Height Master 0,2-12,2", Block Step 1" staggered 515-311

Mitutoyo SKU: 515-311
Price: €3,867.47 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

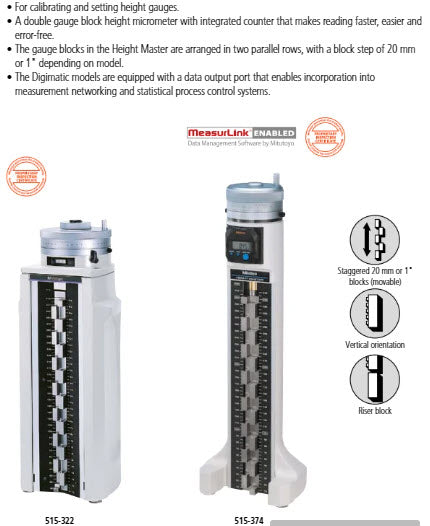

This Universal Height Master offers you the following benefits:
  • It is designed for both vertical and horizontal orientations, enabling you to carry out a wide range of applications such as accuracy checking of machine tool table movements.
  • It is supplied in a fitted wooden case.

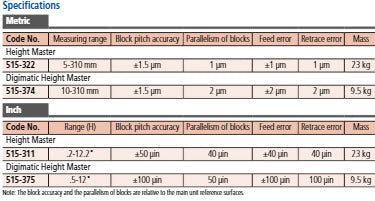

Specification
Graduation:
0.001 mm
Inch-Metric:
Inch
Block step:
1" staggered
Feed error:
±40 µin
Range:
0.2 - 12.2 "
Retrace error:
40 µin
Micrometer adjustment:
20 mm
Micrometer feed:
0.5 mm
Block pitch accuracy:
±50 µin
Parallelism of blocks:
1 µm
Delivered:
In a wooden case with certificate of inspection
Delivered:
In a wooden case with certificate of inspection
Mass:
23 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Universal Height Master 0,2-12,2", Block Step 1" staggered 515-311 Click to open the PDF document
