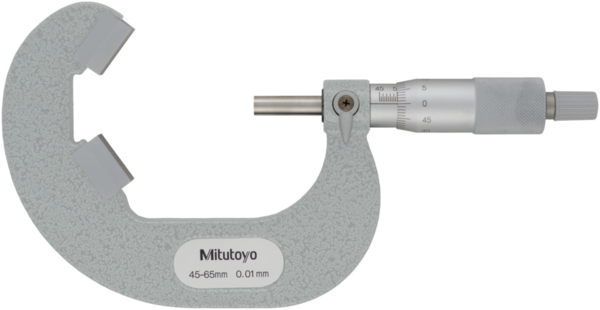

Mitutoyo 5 Flute V-Anvil Micrometer 45-65mm 114-123

Name: Mitutoyo 5 Flute V-Anvil Micrometer 45-65mm 114-123
Brand: Mitutoyo
SKU: 114-123
Price: 534.73 EUR
Availability: InStock

MitutoyoSKU: 114-123

Price:

€534.73 €732.50

Quantity:

This V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:

It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

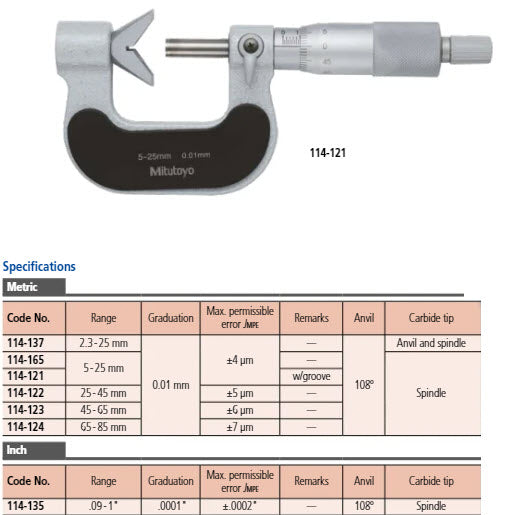

Product Information
Part Number	114-123
Measuring Range	45-65mm
Accuracy	["±.006mm"]
Graduation	.01mm
Accuracy	+/-.006mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	V-Anvil
Constant Force Device	Ratchet Stop
Anvils & Spindle Design	Anvil is 108 degrees Carbide on spindle
Calibration Code	CAL9 B1

Digital/Analog:	Analog

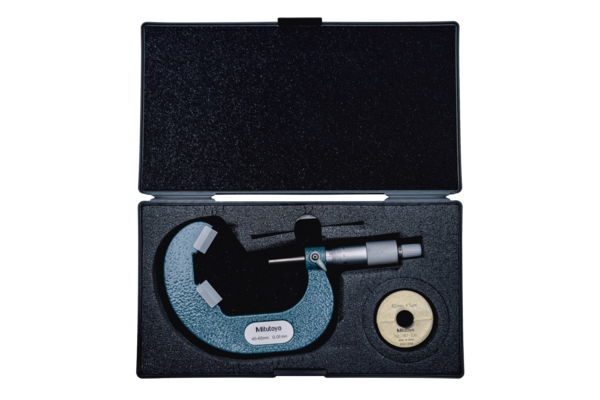

Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	45 - 65 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±6 µm
Anvil:	Without groove
Measuring face:	Prism angle 60°/108°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Setting standard:	167-331 ø 55 mm
Delivered:	Including box, setting standard, key
Mass:	540 g
