Mitutoyo SKU: 114-122
List price: €648.00 Offer price: €502.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Setting Standard V-Anvil Micrometer 5mm 167-327
Part number: 167-327  → View product
Setting Standard V-Anvil Micrometer 10mm 167-328
Part number: 167-328  → View product
Setting Standard V-Anvil Micrometer 25mm 167-329
Part number: 167-329  → View product
Setting Standard V-Anvil Micrometer 40mm 167-330
Part number: 167-330  → View product
Setting Standard V-Anvil Micrometer 55mm 167-331
Part number: 167-331  → View product
Setting Standard V-Anvil Micrometer 70mm 167-332
Part number: 167-332  → View product
A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 5-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.

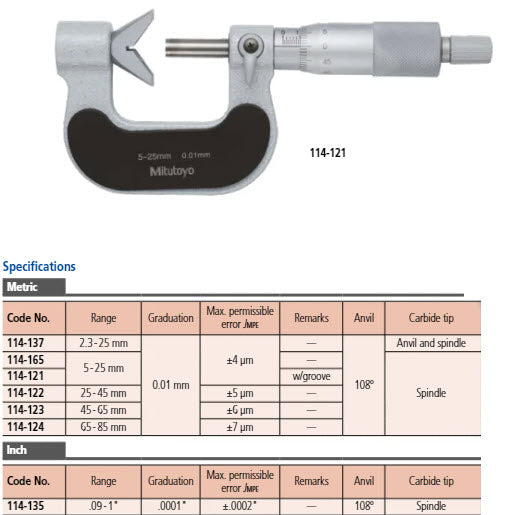

Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
25 - 45 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±5 µm
Anvil:
Without groove
Measuring face:

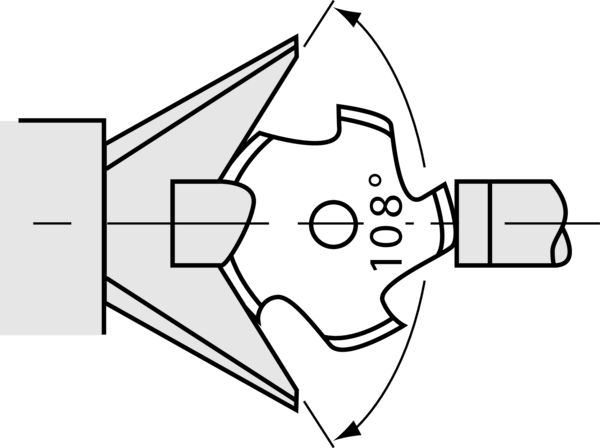

Prism angle 60°/108°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Setting standard:
167-329 ø 25 mm
Delivered:
Including box, setting standard, key
Mass:
400 g

No technical information is currently available.

No application information is currently available.
