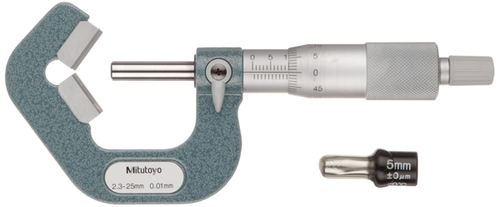

Mitutoyo 5 Flute V-Anvil Micrometer 2,3-25mm 114-137

Mitutoyo SKU: 114-137
List price: €546.00 Offer price: €423.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Setting Standard V-Anvil Micrometer 0,2" 167-337
Part number: 167-337  → View product
Setting Standard V-Anvil Micrometer 0,4" 167-338
Part number: 167-338  → View product
Setting Standard V-Anvil Micrometer 1" 167-339
Part number: 167-339  → View product
Setting Standard V-Anvil Micrometer 1,6" 167-340
Part number: 167-340  → View product
Setting Standard V-Anvil Micrometer 2,2" 167-341
Part number: 167-341  → View product
Setting Standard V-Anvil Micrometer 2,8" 167-342
Part number: 167-342  → View product
Setting Standard V-Anvil Micrometer 3,4" 167-343
Part number: 167-343  → View product
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu
This V-Anvil Micrometer helps you measure cutting tools and taps.
It offers the following benefits:
  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three or five flutes.
  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

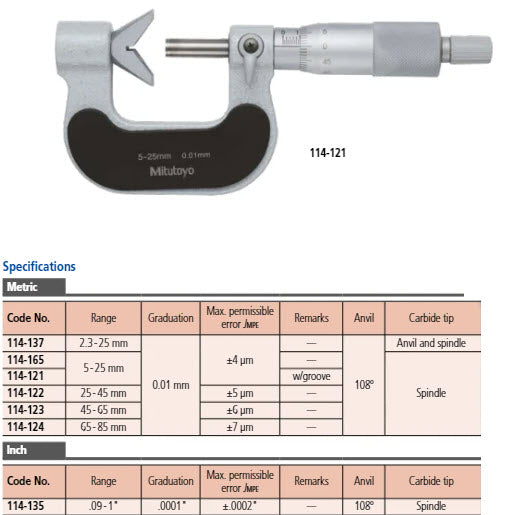

Specification
Digital/Analog:
Analog
Delivered:

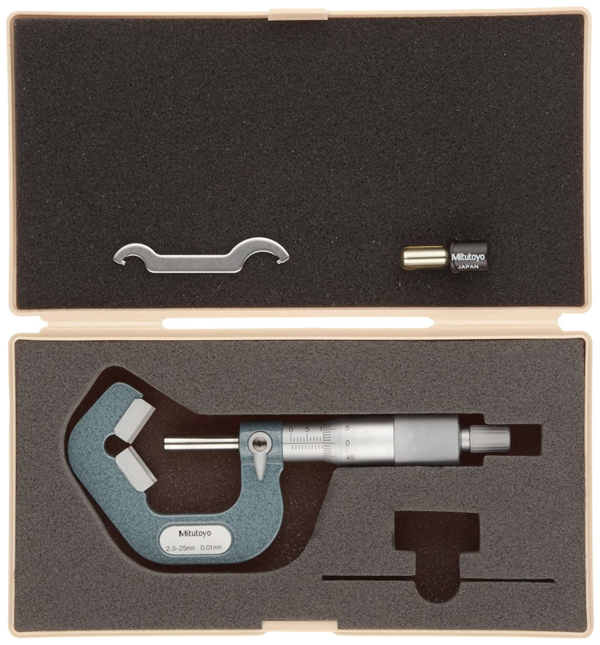

Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
2.3 - 25 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±4 µm
Anvil:
Without groove
Measuring face:

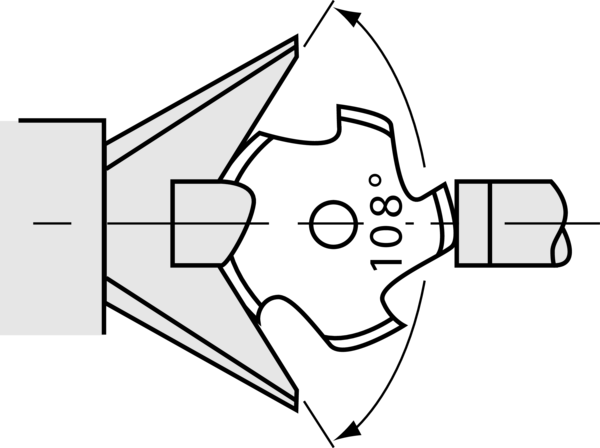

Prism angle 60°/108°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Setting standard:
167-327 ø 5 mm
Delivered:
Including box, setting standard, key
Mass:
220 g

No technical information is currently available.

No application information is currently available.
